Washer Type Load Cell
LC6007
The LC6007 is a low profile, high performance stainless steel ring torsion type load cell. The fully welded construction entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.This product is suitable for small and medium platform scales, hoppers and process weighing.
Quantity:
The LC6007 is a low profile, high performance stainless steel ring torsion type load cell. The fully welded construction entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.This product is suitable for small and medium platform scales, hoppers and process weighing. ( washer type load cell, load cell 300kg price, 500 kg load cell price )
LC6007 Washer Type Load Cell Features:
✅ Capacity range: 250 kg to 60t;
✅ Low profile, alloy steel or stainless steel construction;
✅ Hermetically sealed, IP66 and IP68;
LC6007 Washer Type Load Cell Applications:
✅ Platform scales;
✅ Belt scales;
✅ Silo hopper weighing;

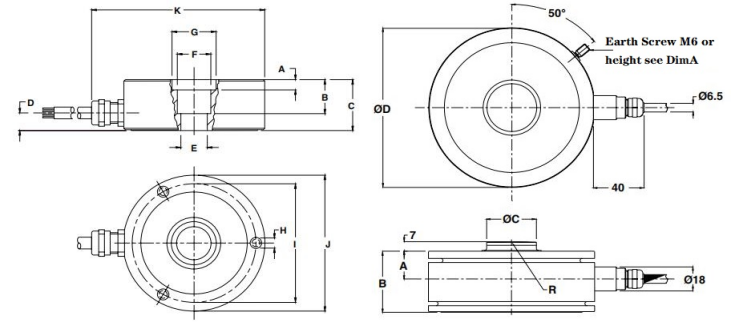

LC6007 Washer Type Load Cell Dimension:
| Cap. | A | B | C | D | E | F | G | H | I | J | K |
| (Ton) | (mm) | ||||||||||
| 0.25/0.5/1t | 1 | 15 | 25 | 9.5 | M10 | Φ19 | Φ25 | M6(3×1200) | Φ70 | Φ80 | 97.5 |
| 2/3.5/5t | 6 | 20 | 30 | 8.5 | 15H7 | Φ19 | Φ25 | 8 Deep | Φ70 | Φ80 | 97.5 |
| 10t | - | 14.8 | 35 | 10 | Φ24.9 | Φ29.1 | Φ83 | Φ95 | 112.5 | ||
| Cap. | A | B | C | D | R |
| (Ton) | (In mm) | ||||
| 28t | 21 | 46 | 35.9 | 120 | 400 |
| 60t | 28 | 62 | 47.9 | 140 | 600 |
LC6007 Washer Type Load Cell Technicla Parameter:
| Rated Load: | 0.25/0.5/1/2/3.5/5/10/28/60t | ||
| Sensitivity: | (2.0±0.01%) mV/V | ||
| Combined Error: | ±0.02% F.S | Operating Temp. Range: | -30~+70℃ |
| Creep Error(30min): | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Excitation voltage: | 5(recommended), 10 (max) |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 380±30Ω/ 750±30Ω | Element Material: | Alloy / Stainless Steel |
| Output Resistance: | 350±2Ω/ 750±3Ω | Cable: | Length=L:1~13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
