Vehicle Weigh Pads
WS1104C
Ningbo SAINTBOND Vehicle Weigh Pads for static axle weigh bridge or a dynamic low-speed in-motion weighing system, tuffer loader scales cand be used with levellers for multi axle vehicles and is fitted with wheels for easy transportation, Vehicle scales weighing Systems are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( Vehicle Weigh Pad, tuffer loader scales, Vehicle scales weighing Systems Vehicle Weigh Pad, tuffer loader scales, Vehicle scales weighing Systems Vehicle Weigh Pad, tuffer loader scales, Vehicle scales weighing Systems Vehicle Weigh Pad, tuffer loader scales, Vehicle scales weighing Systems Vehicle Weigh Pad, tuffer loader scales, Vehicle scales weighing Systems )
Vehicle Weigh Pads: Portable, High-Speed Wheel Load Scales
Vehicle Weigh Pads: Portable, High-Speed Wheel Load Scales
Vehicle Weigh Pads /Vehicle scales weighing Systems are a revolutionary, portable weighing solution designed for fast, accurate, and on-site measurement of axle loads, wheel loads, and gross vehicle weights (GVW). Unlike traditional, stationary weighbridges, these robust and compact pads offer unparalleled flexibility, making Vehicle scales weighing Systems / tuffer loader scales the ideal choice for law enforcement, logistics, agriculture, construction, and military applications.
Our Vehicle scales weighing Systems are engineered with advanced sensor technology to provide reliable data anywhere, anytime—on the road, in the field, or at the warehouse.
WS1104C Vehicle Weigh Pad Applications:
✅ Vehicle Weigh Pads are versatile tools for a wide range of industries
✅ Law Enforcement & DOT: On-road enforcement of weight regulations, preventing road damage and enhancing safety.
✅ Logistics & Warehousing: Inbound/outbound load verification, optimizing truck loads, and reducing shipping costs.
✅ Construction & Quarries: Ensuring dump trucks and heavy machinery are within safe load limits before leaving the site.
✅ Agriculture: Weighing harvests, livestock, and farm equipment directly in the field.
✅ Aviation & Military: Precise weight and balance checks for ground support equipment, cargo, and military vehicles.
✅ Waste Management: Monitoring landfill and recycling center vehicle weights.
✅ Vehicle Weigh Pads are versatile tools for a wide range of industries
✅ Law Enforcement & DOT: On-road enforcement of weight regulations, preventing road damage and enhancing safety.
✅ Logistics & Warehousing: Inbound/outbound load verification, optimizing truck loads, and reducing shipping costs.
✅ Construction & Quarries: Ensuring dump trucks and heavy machinery are within safe load limits before leaving the site.
✅ Agriculture: Weighing harvests, livestock, and farm equipment directly in the field.
✅ Aviation & Military: Precise weight and balance checks for ground support equipment, cargo, and military vehicles.
✅ Waste Management: Monitoring landfill and recycling center vehicle weights.
How WS1104C Vehicle Weigh Pad Works
The system is simple and efficient:
✅ Deploy: Place the Vehicle Weigh Pads on a firm, level surface.
✅ Connect: Link the Vehicle Weigh Pads to the display terminal via a cable or wireless connection.
✅ Calibrate: Perform a quick calibration (if required).
✅ Weigh: Direct the vehicle to drive its wheels onto the Vehicle Weigh Pads at a slow, steady speed.
✅ Read & Record: The terminal instantly displays the weight and stores the data for reporting.
The system is simple and efficient:
✅ Deploy: Place the Vehicle Weigh Pads on a firm, level surface.
✅ Connect: Link the Vehicle Weigh Pads to the display terminal via a cable or wireless connection.
✅ Calibrate: Perform a quick calibration (if required).
✅ Weigh: Direct the vehicle to drive its wheels onto the Vehicle Weigh Pads at a slow, steady speed.
✅ Read & Record: The terminal instantly displays the weight and stores the data for reporting.

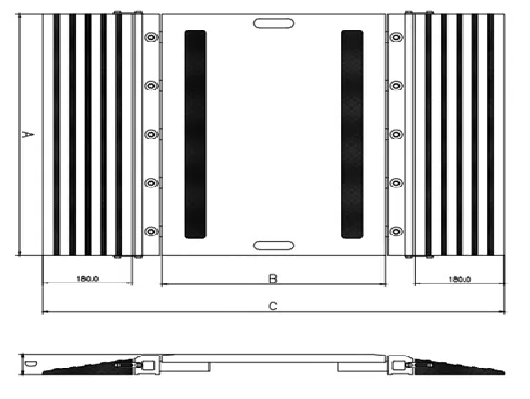

WS1104C Vehicle Weigh Pad Dimension:mm
| Capacity | A | B | C | D |
| 1~5t | 500 | 400 | 760 | 58 |
| 2~20t | 720 | 450 | 810 | 58 |
| 5~25t | 900 | 500 | 860 | 58 |
| Type | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weigh Pad) | (Each Pad) | |
| WS1101W | 300×400×56.5 | 500~8000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000Kg |
WS1104C Vehicle Weigh Pad Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1104C Vehicle Weigh Pad Weighing Indicator: ( Optional)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
Ready to revolutionize your weighing operations? Contact our sales team to learn more, request a detailed quotation, or schedule a live on-site demonstration.
