Underwater Test Loadcell

LC7505P-1

The under water sensor / subsea load cell is a High Strength rigging load cell manufactured with a Load Pin. The cable Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The under water sensor / subsea load cell is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection.

Quantity:

Contact Now

add to cart

✅ Ranges from 3 to 1250 Ton

✅ Integrated 2-wire signal amplifier, 4-20mA

✅ Robust design in stainless steel

✅ Designed for Harsh Environments

✅ Designed to be compatible with existing standards

✅ Easy to install and maintain

The electronics are molded and encapsulated inside the wireless load cell shackle / load rated shackles, proven to be the best solution for EMC, potential leakage and long lifetime performance.

LC7505P Underwater Test Loadcell Specifications:

Capacity:	0.5t~1200t	Zero Point Output:	≤±0.05%F.S/10℃
Zero Point Output:	≤±1%F.S	Temp. Effect on Output:	-20℃~+60℃
Sensitivity:	1.0~1.5mV/V	Operating Temp. Range:	380±30Ω/ 730±30Ω
Non-linearity:	≤±0.5%F.S	Input Impedance:	350±2Ω/ 70±3Ω
Hysteresis:	≤±0.5%F.S	Output Impedance:	≥5000MΩ/VDC
Repeatability:	≤±0.5%F.S	Insulation:	120%F.S
Creep:	≤±0.5%F.S/30Min.	Safety Overload:	150% of rated load
Temp. Effect on Zero:	≤±0.05%F.S/10℃	Material:	Alloy /stainless Steel

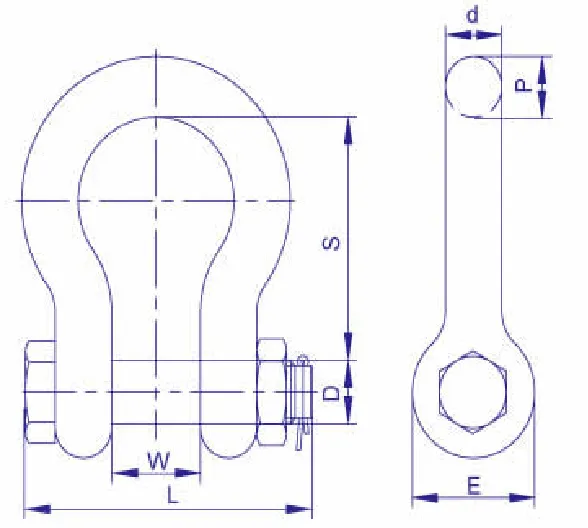

LC7505P Underwater Test Loadcell Dimnension:

Load	Shackle Load	W	D	d	E	P	S	L	O	Weight
(t)	(t)	(mm)								(kg)
LC7505-0.5t	0.5	12	8	6.5	15.5	6.5	29	37	20	0.05
LC7505-0.7t	0.75	13.5	10	8	19	8	31	45	21.5	0.1
LC7505-1t	1	17	12	9.5	23	9.5	36.5	54	26	0.13
LC7505-1.5t	1.5	19	14	11	27	11	43	62	29.5	0.22
LC7505-2t	2	20.5	16	13	30	13	48	71.5	33	0.31
LC7505-3t	3.25	27	20	16	38	17.5	60.5	89	43	0.67
LC7505-4t	4.75	32	22	19	46	20.5	71.5	105	51	1.14
LC7505-5t	6.5	36.5	27	22.5	53	24.5	84	121	58	1.76
LC7505-8t	8.5	43	30	25.5	60.5	27	95	136.5	68.5	2.58
LC7505-9t	9.5	46	33	29.5	68.5	32	108	149.5	74	3.96
LC7505-10t	12	51.5	36	33	76	35	119	164.5	82.5	5.06
LC7505-13t	13.5	57	39	36	84	38	133.5	179	92	7.29
LC7505-15t	17	60.5	42	39	92	41	146	194.5	98.5	8.75
LC7505-25t	25	73	52	47	106.5	57	178	234	127	14.22
LC7505-30t	35	82.5	60	53	122	61	197	262.5	146	21
LC7505-55t	55	105	72	69	144.5	79.5	267	339	184	42.12
LC7505-80t	85	127	85	76	165	92	330	394	200	74.8
LC7505-100t	120	133.5	95	92	203	104.5	371.4	444	228.5	123.6
LC7505-150t	150	140	110	104	228.5	116	368	489	254	165.9
LC7505-200t	200	184	130	115	270	115	396	580	280	237
LC7505-300t	300	200	150	130	320	130	450	644	300	363
LC7505-500t	500	240	185	165	390	165	557.5	779	360	684
LC7505-800t	800	300	240	207	493	207	660	952	440	1313
LC7505-1000t	1000	390	270	240	556	240	780.5	1136	560	2024
LC7505-1200t	1250	400	300	260	620	260	850	1225	560	2511

Note:All dimensions are subject to change according actual use as a standard.

LC7505P Underwater Test Loadcell Applications:

✅ Cable recovery/repair

✅ Vehicle lifting

✅ Wave generator mooring/tethering

✅ Offshore wind cable installations

✅ Bollard Pull and Certification

✅ Cable Laying
