Underwater Sensor

LC7505P

Load Shackle high-precision load monitoring device with a shackle design for easy rigging integration. Made from alloy steel, it offers high accuracy, corrosion resistance, and overload protection. Ideal for cranes, hoists, and marine applications. Available in 1t–1200t capacities with analog/wireless outputs

Quantity:

Contact Now

add to cart

Load Shackle high-precision load monitoring device with a shackle design for easy rigging integration. Made from alloy steel, it offers high accuracy, corrosion resistance, and overload protection. Ideal for cranes, hoists, and marine applications. Available in 1t–1200t capacities with analog/wireless outputs including 3 ton load cell price. ( underwater sensor, 3 ton load cell price, Saintbond underwater sensor )

Durable · Accurate · Reliable

LC7505P Underwater Sensor Features:

✅ Monitors traction force and other force measurement;

✅ Available in 7 standard ranges between0.5t and 1200t;

✅ Alloy steel and Stainless steel construction;

✅ Special execution for harsh environmental conditions (IP66);

✅ High reliability for strict safety requirements;

✅ Simple installation for cost-saving solutions to measurement problems;

✅ 0~5V, 0~10V, 4~20mA (Optional);

✅ Wireless version (Optional);

✅ Safety Factor:4:1, 5:1, 6:1,8:1 (Optional);

LC7505P Underwater Sensor Description:

Saintbond Underwater Sensor can be used in all applications where a load measuring survey is necessary.

The load pin included on the shackle provides a proportional electrical signal according to the applied load. The transducer is constructed with high resistance stainless steel and is insensitive to external mechanical, chemical or marine effects making them ideal for use in harsh environmental conditions.

LC7505P Underwater Sensor Applications:

Saintbond Underwater Sensor is designed for hoisting in several applications like cranes winches, lifting, and other marine applications. In combination with a portable GM 80 or LMU (Load Monitoring Unit), the Saintbond Underwater Sensor is the most reliable and simplest method to control your load application.

LC7505P Underwater Sensor Specifications:

Capacity:	0.5t~1200t	Zero Point Output:	≤±0.05%F.S/10℃
Zero Point Output:	≤±1%F.S	Temp. Effect on Output:	-20℃~+60℃
Sensitivity:	1.0~1.5mV/V	Operating Temp. Range:	380±30Ω/ 730±30Ω
Non-linearity:	≤±0.5%F.S	Input Impedance:	350±2Ω/ 70±3Ω
Hysteresis:	≤±0.5%F.S	Output Impedance:	≥5000MΩ/VDC
Repeatability:	≤±0.5%F.S	Insulation:	120%F.S
Creep:	≤±0.5%F.S/30Min.	Safety Overload:	150% of rated load
Temp. Effect on Zero:	≤±0.05%F.S/10℃	Material:	Alloy /stainless Steel

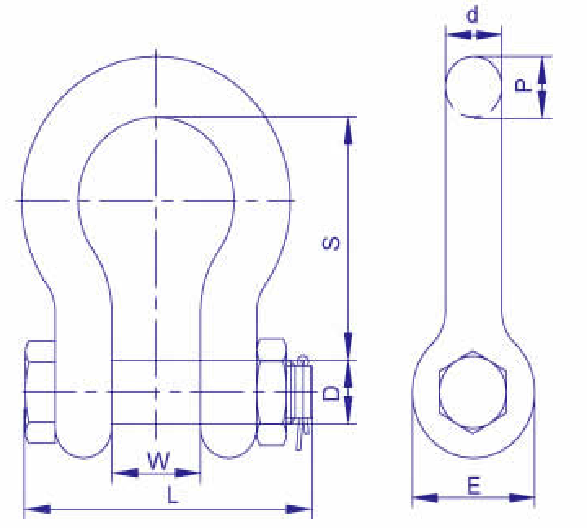

LC7505P Underwater Sensor Dimension:mm

Load	Shackle Load	W	D	d	E	P	S	L	O	Weight
(t)	(t)	(mm)								(kg)
LC7505-0.5t	0.5	12	8	6.5	15.5	6.5	29	37	20	0.05
LC7505-0.7t	0.75	13.5	10	8	19	8	31	45	21.5	0.1
LC7505-1t	1	17	12	9.5	23	9.5	36.5	54	26	0.13
LC7505-1.5t	1.5	19	14	11	27	11	43	62	29.5	0.22
LC7505-2t	2	20.5	16	13	30	13	48	71.5	33	0.31
LC7505-3t	3.25	27	20	16	38	17.5	60.5	89	43	0.67
LC7505-4t	4.75	32	22	19	46	20.5	71.5	105	51	1.14
LC7505-5t	6.5	36.5	27	22.5	53	24.5	84	121	58	1.76
LC7505-8t	8.5	43	30	25.5	60.5	27	95	136.5	68.5	2.58
LC7505-9t	9.5	46	33	29.5	68.5	32	108	149.5	74	3.96
LC7505-10t	12	51.5	36	33	76	35	119	164.5	82.5	5.06
LC7505-13t	13.5	57	39	36	84	38	133.5	179	92	7.29
LC7505-15t	17	60.5	42	39	92	41	146	194.5	98.5	8.75
LC7505-25t	25	73	52	47	106.5	57	178	234	127	14.22
LC7505-30t	35	82.5	60	53	122	61	197	262.5	146	21
LC7505-55t	55	105	72	69	144.5	79.5	267	339	184	42.12
LC7505-80t	85	127	85	76	165	92	330	394	200	74.8
LC7505-100t	120	133.5	95	92	203	104.5	371.4	444	228.5	123.6
LC7505-150t	150	140	110	104	228.5	116	368	489	254	165.9
LC7505-200t	200	184	130	115	270	115	396	580	280	237
LC7505-300t	300	200	150	130	320	130	450	644	300	363
LC7505-500t	500	240	185	165	390	165	557.5	779	360	684
LC7505-800t	800	300	240	207	493	207	660	952	440	1313
LC7505-1000t	1000	390	270	240	556	240	780.5	1136	560	2024
LC7505-1200t	1250	400	300	260	620	260	850	1225	560	2511
