Underwater Load Cell

LC7506P

The waterproof load cell / underwater load cell for sale is a High Strength cable Load Cell manufactured with a Load Pin. The cable Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The waterproof load cell / underwater load celll is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection.

Quantity:

Contact Now

add to cart

✅ Ranges from 3 to 500 Ton

✅ Integrated 2-wire signal amplifier, 4-20mA

✅ Robust design in stainless steel

✅ Designed for Harsh Environments

✅ Designed to be compatible with existing standards

✅ Easy to install and maintain

The electronics are molded and encapsulated inside the waterproof load cell / underwater load cell, proven to be the best solution for EMC, potential leakage and long lifetime performance.

LC7506P Underwater Load Cell Specifications:

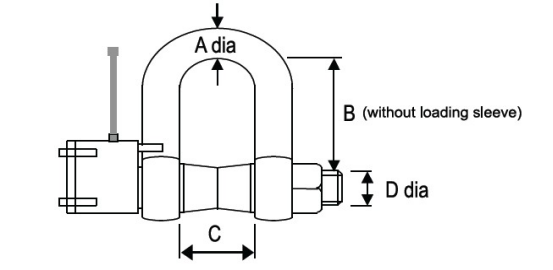

LC7506P Underwater Load Cell Dimnension:

Full Load	Max. Proof Load	Normal Size ‘A’	Inside Length‘B’	Inside Width ‘C’	Bolt	Unit Weight
Full Load	Max. Proof Load	Normal Size ‘A’	Inside Length‘B’	Inside Width ‘C’	Dia. ‘D’	Unit Weight
(Ton)	(Ton	(mm)				(Kg)
3t	4.2	25	85	43	28	3
6t	8	25	85	43	28	3
10t	14	32	95	51	35	6
17t	23	38	125	60	41	10
25t	34	45	150	74	51	15
35t	47	50	170	83	57	22
50t	67	65	200	105	70	40
75t	100	75	230	127	83	60
100t	134	89	270	146	95	100
120t	150	90	290	154	95	130
150t	180	104	330	155	108	170
200t	320	152	559	184	121	215
300t	480	172	683	213	152	364
500t	800	184	813	210	178	520

Note:All dimensions are subject to change according actual use as a standard.

LC7506P Underwater Load Cell Applications:

✅ Subsea Cable recovery/repair;

✅ Subsea vehicle lifting;

✅ Wave generator mooring/tethering;

✅ Offshore wind cable installations;

✅ Bollard Pull and Certification;

✅ Subsea Cable Laying;
