Tiny Load Cell
LC5412
Tiny Load Cell – High-Precision Force Measurement
Saintbond Tiny Load Cell designed for tension and compression applications, this Saintbond Tiny Load Cell offers robust construction and high accuracy. Saintbond Tiny Load Cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Saintbond Tiny Load Cell designed for tension and compression applications, this Saintbond Tiny Load Cell offers robust construction and high accuracy. Saintbond Tiny Load Cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Quantity:
Tiny Load Cell – High-Precision Force Measurement
Saintbond Tiny Load Cell designed for tension and compression applications, this Saintbond Tiny Load Cell offers robust construction and high accuracy. Saintbond Tiny Load Cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available. ( tiny load cell, Saintbond 100kg load cell, Saintbond tiny load cell )
Saintbond 100kg load cell, Stainless steel, small size, end of the end of the line. The change of the force value in the measurable pipe is mainly applied to the precision industrial measurement system, such as the test machine, the pulling force tester, the riveting machine and other non standard automatic equipment.
LC5412 Tiny Load Cell Features:
✅ Tension and Compression load cells
✅ Capacity:20N,...,5000N
✅ Super micro structure
✅ Stainless steel construction
✅ Environment protection class:IP65+
LC5412 Tiny Load Cell Applications:
✅ Flat mounting weighing systems,
✅ Force measuring in a narrow space.

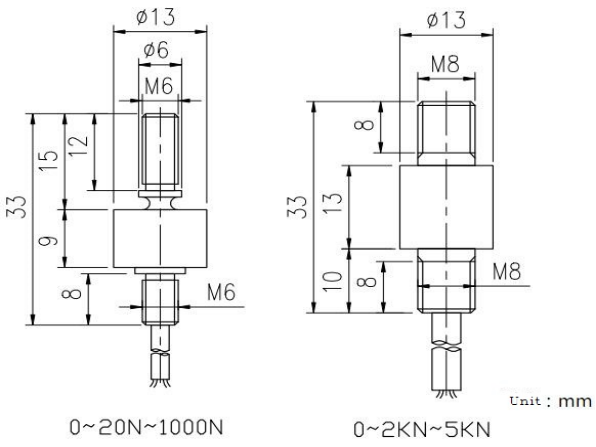

LC5412 Tiny Load Cell Dimension:(mm)
LC5412 Tiny Load Cell Technical Parameter:
| Capacity | 20/50/100/200/300/500/1000/2000/5000N | Material | Stainless Steel |
| Rated output | 1.0-1.5 mV/V | Output Impedance | 350±3Ω |
| Non-linearity | 1.0-5.0 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 1.0 % F.S. | Recommended Excitation | 2.5-5V |
| Repeatability | 1.0 % F.S. | Excitation max | 10V |
| Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.1 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.1 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 350±5Ω | Cable Length | ⌀2 x 3m |
