Through Hole Load Cell
LC6002
Through Hole Load Cell /force washer transducer – Reliable Force Measurement Solution!
LC6002 Through Hole Load Cell / force washer transducer designed for tension & compression applications, this durable load cell features a central hole for easy mounting. LC6002 Through Hole Load Cell / force washer transducer high accuracy, rugged construction, and IP-rated protection make 100n load cell Through Hole Load Cell ideal for industrial scales, machinery, and structural testing.
LC6002 Through Hole Load Cell / force washer transducer designed for tension & compression applications, this durable load cell features a central hole for easy mounting. LC6002 Through Hole Load Cell / force washer transducer high accuracy, rugged construction, and IP-rated protection make 100n load cell Through Hole Load Cell ideal for industrial scales, machinery, and structural testing.
Quantity:
Through Hole Load Cell /force washer transducer –Reliable Force Measurement Solution!
LC6002 Through Hole Load Cell / force washer transducer designed for tension & compression applications, this durable load cell features a central hole for easy mounting. LC6002 Through Hole Load Cell / force washer transducer high accuracy, rugged construction, and IP-rated protection make 100n load cell Through Hole Load Cell ideal for industrial scales, machinery, and structural testing. 250 kg load cell ( through hole load cell, force washer transducer, 100n load cell )
LC6002 Through Hole Load Cell Product Description:
✅ Pressure structure sensor has the characteristics of low installation height and small deformation;
✅ It is suitable for force measurement of screws and rods, force measurement in various small spaces, and force detection and control equipment in industrial and R & D fields.

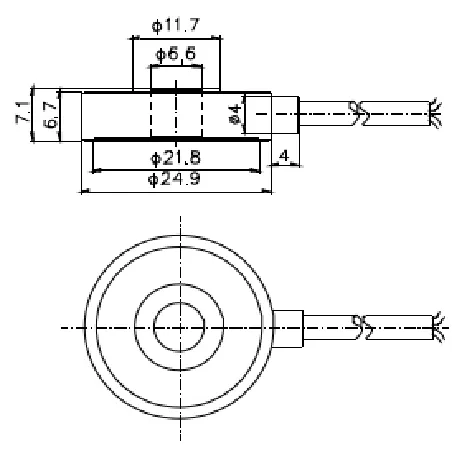

LC6002 Through Hole Load Cell Dimension:mm
LC6002 Through Hole Load Cell Technical Parameter:
| Capacity | 0-50/100/200/500/1000N | Material | Alloy / Stainless Steel |
| Rated output | 2.0±20%mV/V | Output Impedance | 700±10Ω |
| Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.2% F.S. | Recommended Excitation | 5V |
| Repeatability | 0.2% F.S. | Excitation max | 10V |
| Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.5 |
| Protection Class | IP 66 | Ultimate Load Limit | 2 |
| Input Impedance | 700±20Ω | Cable Length | ∅3 x 4m |
