Through Hole Column Load Cell
LC6300
LC6300 Through Hole Column Load Cell / Column load cell through hole high-precision load cell features a hollow ring design for measuring tension, compression, and radial forces. Ideal for industrial weighing, machinery monitoring, and structural testing, it offers robust durability, high accuracy, and easy installation. Column load cell through hole / through hole canister load cell compatible with various signal outputs, it ensures reliable performance in harsh environments.
Quantity:
LC6300 Through Hole Column Load Cell / Column load cell through hole high-precision load cell features a hollow ring design for measuring tension, compression, and radial forces. Ideal for industrial weighing, machinery monitoring, and structural testing, it offers robust durability, high accuracy, and easy installation. Column load cell through hole / through hole canister load cell compatible with various signal outputs, it ensures reliable performance in harsh environments. ( Through Hole Column Load Cell, Column load cell through hole, through hole canister load cell )
LC6300 Through Hole Column Load Cell Introduction:
✅ Hollow design, high precision, strong anti-bias load capacity;
✅ Suitable for extrusion, assembly, material tank, material mechanics testing machine and other fields;
LC6300 Through Hole Column Load Cell Application:
Pressure Testing Machine, Large Hydraulic Machinery Equipment, Large Range Force Measurement and Various Weighing Testing in Colleges and Universities, Large Industrial Weighing Control System;
LC6300 Through Hole Column Load Cell Features:
✅ Self-restoring rocker pin load cell.
✅ Upper and lower inhibitor design, easy to installation.
✅ Dynamic respond, and super capacity for anti-overload.
✅ Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.

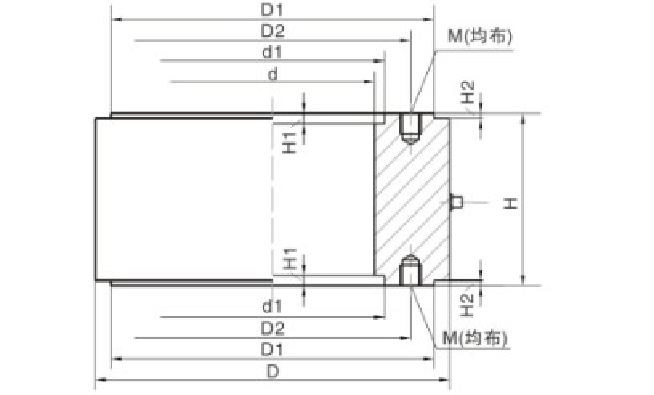

LC6300 Through Hole Column Load Cell Dimension:mm
| Capacity | D | D1 | D2 | d | d1 | H | H1 | H2 | M |
| (kN) | ( mm ) | ||||||||
| 600 | 160 | 140 | 120 | 80 | 100 | 100 | 5 | 5 | 4-M12 |
| 1000 | 200 | 170 | 145 | 100 | 120 | 110 | 5 | 5 | 4-M12 |
| 1500 | 225 | 190 | 160 | 120 | 135 | 120 | 5 | 5 | 4-M12 |
| 2000 | 260 | 230 | 195 | 140 | 160 | 130 | 5 | 5 | 4-M12 |
| 3000 | 270 | 245 | 225 | 160 | 180 | 150 | 10 | 5 | 4-M12 |
| 4000 | 295 | 275 | 235 | 195 | 175 | 160 | 10 | 10 | 8-M16 |
| 5000 | 340 | 310 | 265 | 196 | 215 | 165 | 10 | 10 | 8-M16 |
| 6500 | 385 | 355 | 305 | 240 | 260 | 180 | 10 | 20 | 8-M16 |
| 20000kN | 594 | 550 | 490 | 400 | 430 | 200 | 10 | 25 | 8-M16 |
Note:The overall dimensions can be customized according to the customer's requirements:
LC6300 Through Hole Column Load Cell Technical Parameter:
| Capacity: | 600/1000/1500/2000/3000/4000/5000/6500/2000/65000kN | ||
| Accuracy: | 0.2%FS | Insulation Resistance: | ＞2000MΩ |
| Sensitivity: | 2.0 V/V | Temperature Effect On Sensitivity: | ＜0.1%FS/ 10℃ |
| Non-Linearity: | ≤0.2%FS | Temp. Effect On Zero Balance: | ＜0.1%FS/ 10℃ |
| Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V (DC) |
| Hysteresis: | ≤0.2%FS | Nominal Range Of Excitation Voltage: | 6~12V(DC) |
| Input Resistance: | 380Ω | Service Temperature: | -30~70℃ |
| Out Resistance: | 350Ω | Safe Load Limit: | 120%FS |
