Tension Load Cell
LC220
LC220 Tension Load Cells / tension load cell manufacturers precisely measure tensile forces with 0.03% accuracy. Robust alloy /stainless steel construction (IP65/IP67+) ensures durability in harsh conditions. Overhead crane load cell Capacities / tension load cell manufacturers1-500t, featuring low creep and stable performance. Compatible with mV/V, 4-20mA, RS485 outputs. Ideal for industrial scales, material testing. CE certified.
Quantity:
LC220 Tension Load Cells / tension load cell manufacturers precisely measure tensile forces with 0.03% accuracy. Robust alloy /stainless steel construction (IP65/IP67+) ensures durability in harsh conditions. Overhead crane load cell Capacities / tension load cell manufacturers1-500t, featuring low creep and stable performance. Compatible with mV/V, 4-20mA, RS485 outputs. Ideal for industrial scales, material testing. CE certified. ( tension load cell, tension load cell manufacturers, overhead crane load cell )

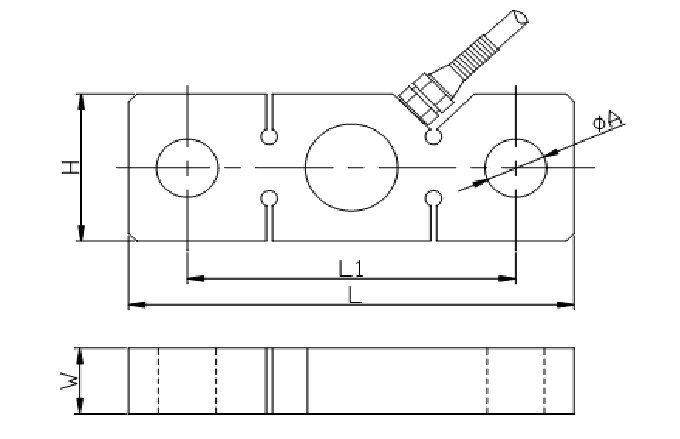

LC220 Tension Load Cell Dimension:mm
| Capacity | H | W | L | L1 | ΦA |
| ( t ） | ( mm ) | ||||
| 1~5t | 70 | 30 | 200 | 140 | 38 |
| 7.5~10t | 90 | 36 | 280 | 180 | 56 |
| 20~30t | 125 | 55 | 370 | 230 | 60 |
| 40~60t | 150 | 85 | 430 | 254 | 76 |
| 75~150t | 220 | 115 | 580 | 340 | 116 |
| 250t~300t | 350 | 200 | 780 | 550 | 150 |
| 500t | 570 | 295 | 930 | 680 | 220 |
LC220 Tension Load Cell Technical Parameter:
| Rated Load: | 1/2/3/5/7.5/10/20/30/40/50/60/75/100/150/200/250/300/500t | ||
| Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error（30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12 DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 351±2Ω | Cable: | Length=L:1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
