Tension Force Sensor
LCS8000
Tension type load cell / tension load cell price, This advanced wireless load cell delivers precise real-time tension measurement for ropes and cables. Designed for harsh environments, it features robust construction, IP-rated weather resistance, and long-range data transmission. Ideal for lifting, rigging, marine, and safety-critical applications, Tension type load cell / tension load cell price ensures operational efficiency and safety with easy integration and reliable, calibration-certified accuracy.
Quantity:
Tension type load cell / tension load cell price, This advanced wireless load cell deliversprecise real-time tension measurement for ropes and cables. Designed for harsh environments, it features robust construction, IP-rated weather resistance, and long-range data transmission. Ideal for lifting, rigging, marine, and safety-critical applications, Tension type load cell / tension load cell price ensures operational efficiency and safety with easy integration and reliable, calibration-certified accuracy. ( tension force sensor, tension type load cell, tension load cell price )
LCS8000 Tension Force Sensor Features:
✅ Can be fitted retrospectively;
✅ Sufficiently accurate for determining remaining design life of cranes and hoists;
✅ Available in capacities for measuring rated loads up to 310/20/30/40/50/60/100/150/200/250/300kN per fall;
✅ Can be fitted to ropes with diameters between 6 and 36 mm.
✅ IP67/IP68 rated;
✅ Simple installation - clamp on, connect up 4 wires and calibrate in situation;
✅ Can be fitted retrospectively;
✅ Sufficiently accurate for determining remaining design life of cranes and hoists;
✅ Available in capacities for measuring rated loads up to 310/20/30/40/50/60/100/150/200/250/300kN per fall;
✅ Can be fitted to ropes with diameters between 6 and 36 mm.
✅ IP67/IP68 rated;
✅ Simple installation - clamp on, connect up 4 wires and calibrate in situation;

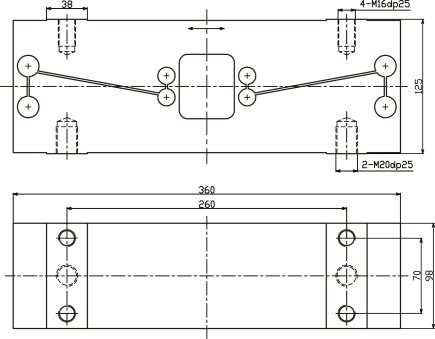

LCS8000 Tension Force Sensor Dimension:mm
LCS8000 Tension Force Sensor Technical Parameter:
| Capacity: | 200/500/1000/2000kg | Linear Error: | <±0.1% |
| Sensitivity: | 1±0.1% | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | <±0.1% F.S | Working humidity Range: | <90%R.H. |
| Power Supply: | DC5-15V | Repeatability Error: | <±0.1% |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Sealing Class: | IP67/IP68 | Maximum Excitation: | 15V DC |
| Input Resistance: | 380±10Ω | Max. Safe Over Load: | 150%F.S |
| Output Resistance: | 350±5Ω | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Insulation Resistance: | ≥5000MΩ |
