TE Load Cell – High-Precision Force Measurement
LC519 te Load Cell Compact and durable, our spoke load cell delivers accurate tension and compression measurements for industrial, automotive, and structural applications. Force sensing load cell /5kn load cell featuring robust stainless steel construction, high overload protection, and IP-rated sealing, it ensures reliable performance in harsh environments. With mV/V output and easy integration, it’s ideal for real-time load monitoring. Customizable options available.
Key Features:
✅ High Accuracy – Precise force measurement for tension & compression.
✅ Robust Construction – Alloy /Stainless steel design ensures durability.
✅ Overload Protection – Safeguards against excessive loads.
✅ IP-Rated Sealing – Resists dust, moisture & harsh environments.
✅ Easy Integration – Standard mV/V output & compact design.
✅ Versatile Use – Ideal for industrial, automotive & structural applications.
✅ Customizable – Optional sizes, capacities & signal outputs.
LC519 te Load Cell Compact and durable, our spoke load cell delivers accurate tension and compression measurements for industrial, automotive, and structural applications. Force sensing load cell /5kn load cell featuring robust stainless steel construction, high overload protection, and IP-rated sealing, it ensures reliable performance in harsh environments. With mV/V output and easy integration, it’s ideal for real-time load monitoring. Customizable options available.
Key Features:
✅ High Accuracy – Precise force measurement for tension & compression.
✅ Robust Construction – Alloy /Stainless steel design ensures durability.
✅ Overload Protection – Safeguards against excessive loads.
✅ IP-Rated Sealing – Resists dust, moisture & harsh environments.
✅ Easy Integration – Standard mV/V output & compact design.
✅ Versatile Use – Ideal for industrial, automotive & structural applications.
✅ Customizable – Optional sizes, capacities & signal outputs.
Quantity:
TE Load Cell – High-Precision Force Measurement
LC519 te Load Cell Compact and durable, our spoke load cell delivers accurate tension and compression measurements for industrial, automotive, and structural applications. Force sensing load cell /5kn load cell featuring robust stainless steel construction, high overload protection, and IP-rated sealing, it ensures reliable performance in harsh environments. With mV/V output and easy integration, it’s ideal for real-time load monitoring. Customizable options available. ( force sensing load cell, te load cell, 5kn load cell )

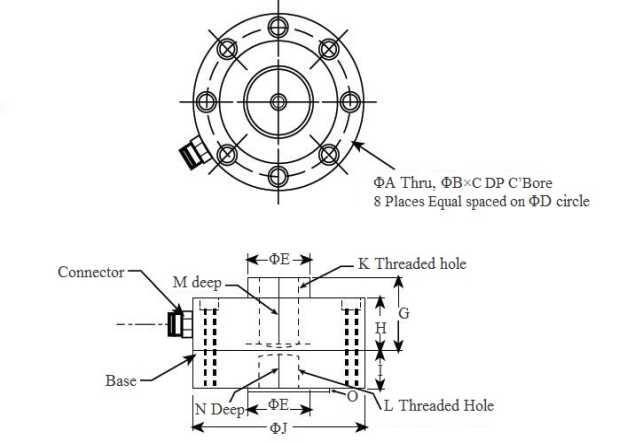

LC519 te Load Cell Dimension:
| Capacity(klb) | 5/10klb | 25/50klb | 100klb |
| A | 0.283 | 0.343 | 0.406 |
| B | 0.406 | 0.508 | 0.626 |
| C | 0.3 | 0.4 | 0.4 |
| D | 3.5 | 4 | 4.6 |
| E | 1.3 | 1.6 | 2 |
| F | 0.626 | 0.876 | 0.876 |
| G | 1.75 | 2.12 | 2.25 |
| H | 1.25 | 1.87 | 2 |
| I | 0.75 | 0.94 | 1.14 |
| J | 4.12 | 4.75 | 5.5 |
| K | .1/2-20 | .3/4-16 | 1.25-12 |
| L | .1/2-20 | .3/4-16 | 1.25-12 |
| M | 1.337 | 1.541 | 1.886 |
| N | 0.82 | 0.811 | 1.2 |
| O | 0.0404 | 0.0404 | 0.0404 |
LC519 te Load Cell Technical Prameter:
| Rated Load: | 5/10/25/50/100klb | Operating Temp. Range | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 385±30Ω/775±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 350±4Ω/702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
