Subminiature Load Button
LC5203
Saintbond Subminiature Load Button high-precision sensor designed to measure compressive forces in compact spaces. Features robust construction, high accuracy, and low deflection. Ideal for industrial automation, medical devices, and small-scale testing.Hydraulic press load cell low profileavailable in various capacities (e.g., 5~1000kg) with options for analog or digital output. Hydraulic press load cell Compact size ensures easy integration.
Quantity:
Saintbond Subminiature Load Button high-precision sensor designed to measure compressive forces in compact spaces. Features robust construction, high accuracy, and low deflection. Ideal for industrial automation, medical devices, and small-scale testing.Hydraulic press load cell low profileavailable in various capacities (e.g., 5~1000kg) with options for analog or digital output. Hydraulic press load cell Compact size ensures easy integration. ( hydraulic press load cell, subminiature load button, Saintbond subminiature load button )
LC5203 Subminiature Load Button Description:
SAINTBOND Miniature compression load cells are made of SAINTBOND’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LC5203 subminiature load button load cells start from 100kg to 1000kg. The measuring accuracy is 0.05%R.O. (R.O.= Rated Output).) Manufactured from high quality aluminum alloy/ stainless steel of aviation standard.
LC5203 subminiature load button load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
LC5203Subminiature Load Button Features:
✅ Tension and Compression load cells
✅ Capacity:100kg,...,1000kg
✅ Accuracy:0.05%R.O.
✅ Super micro structure
✅ Stainless steel construction
✅ Environment protection class:IP65
LC5203 Subminiature Load Button Applications:
✅ Flat mounting weighing systems,
✅ Force measuring in a narrow space.

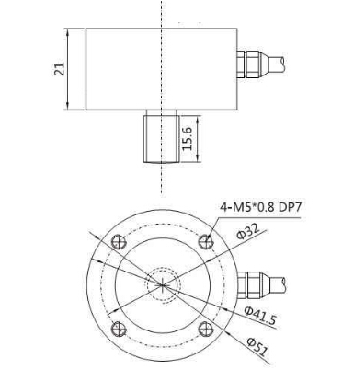

LC5203 Subminiature Load Button Dimension:
LC5203 Subminiature Load Button Technical Parameter:
| Model | LC5203 | Excitation,Recommended | ≤6VDC |
| Rated Capacity | 100/200/300/500/1000kg | Operating Temp.Range | -10－+40℃ |
| Accuracy Class | X | Safe Overload | 120%R.C. |
| Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
| Zero Balance | ±0.1 mV/V | Cable,Length | ø3mm×2m |
| Input Resistance | 350±10Ω | Hysteresis Error | ±0.05%R.O. |
| Output Resistance | 350±10Ω | Creep in 2 Min. | ±0.05%R.O. |
| Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
| Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
