Spoke Load Cell
LC526M
LC526 Spoke Load Cell / pancake loadcells Compact and durable, our spoke load cell delivers accurate tension and compression measurements for industrial, automotive, and structural applications. Spoke Load Cell / pancake loadcells featuring robust stainless steel construction, high overload protection, and IP-rated sealing, it ensures reliable performance in harsh environments. With mV/V output and easy integration, it’s ideal for real-time load monitoring. 5t load cell / pancake loadcells, Customizable options available.
Key Features:
✅ High Accuracy – Precise force measurement for tension & compression.
✅ Robust Construction – Alloy /Stainless steel design ensures durability.
✅ Overload Protection – Safeguards against excessive loads.
✅ IP-Rated Sealing – Resists dust, moisture & harsh environments.
✅ Easy Integration – Standard mV/V output & compact design.
✅ Versatile Use – Ideal for industrial, automotive & structural applications.
✅ Customizable – Optional sizes, capacities & signal outputs.
Key Features:
✅ High Accuracy – Precise force measurement for tension & compression.
✅ Robust Construction – Alloy /Stainless steel design ensures durability.
✅ Overload Protection – Safeguards against excessive loads.
✅ IP-Rated Sealing – Resists dust, moisture & harsh environments.
✅ Easy Integration – Standard mV/V output & compact design.
✅ Versatile Use – Ideal for industrial, automotive & structural applications.
✅ Customizable – Optional sizes, capacities & signal outputs.
Quantity:
Spoke Load Cell – High-Precision Force Measurement
LC526 Spoke Load Cell / pancake loadcells Compact and durable, our spoke load cell delivers accurate tension and compression measurements for industrial, automotive, and structural applications. Spoke Load Cell / pancake loadcells featuring robust stainless steel construction, high overload protection, and IP-rated sealing, it ensures reliable performance in harsh environments. With mV/V output and easy integration, it’s ideal for real-time load monitoring. 5t load cell / pancake loadcells, Customizable options available. ( spoke load cell, pancake loadcells, 5t load cell )

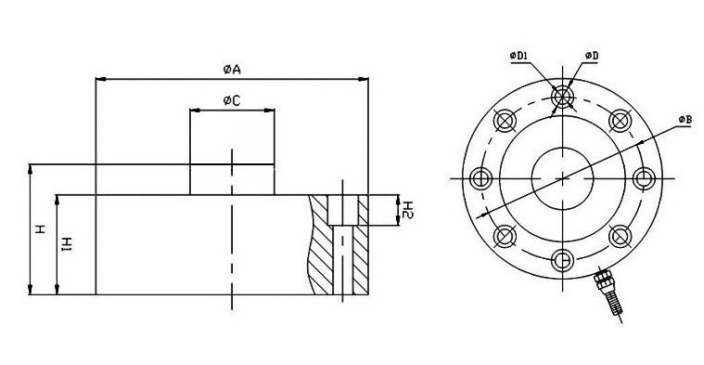

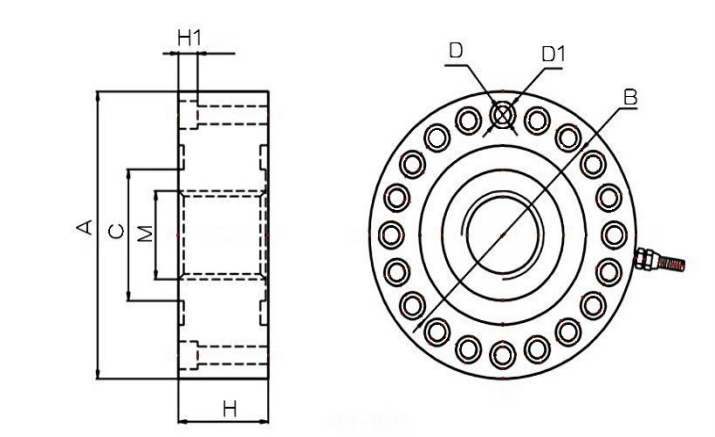

LC526 Spoke Load Cell Dimension:
| Cap. | A | B | C | D | D1 | H | H1 | H2 | M |
| ( t ) | ( mm ) | ||||||||
| 0.2~0.7t | 74 | 63 | 24 | 9 | 6 | 34 | 30 | 7.2 | M16×1.5 |
| 1~5t | 105 | 89 | 32 | 11 | 7 | 37 | 34 | 7.2 | M16×1.5 |
| 10~20t | 120.6 | 101.8 | 39 | 14 | 9 | 53.5 | 41 | 10.5 | M32×1.5 |
| 30t | 141 | 116.8 | 50.4 | 18 | 11 | 57.2 | 50.8 | 11 | M40×1.5 |
| Cap. | A | B | C | D | D1 | H | H1 | M |
| ( t ) | ( mm ) | |||||||
| 40~80t | 208 | 174 | 95 | 20 | 13 | 70 | 15 | M40×1.5 |
| 100~250t | 280 | 230 | 120 | 30 | 17 | 57.2 | 50.8 | M64×3 |
| 300~450t | 360 | 300 | 190 | 40 | 25 | 110 | 20 | M100×3 |
LC526 Spoke Load Cell Technical Prameter:
| Rated Load: | 0.2/0.7/1/3/5/10/20/30//40/50/80/100/250/300/450t | ||
| Sensitivity: | (2.0±0.1%)) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03%F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 701±2Ω | Cable: | 13m(0.2~30t),16m(40~450t) |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
