Single Pulley Tension Sensor
LCS7003
High-precision tension strain gauge / micro tension sensor easy to install; suitable for tension measurement of various optical fibers, spinning, chemical fibers, metal wires, wires, cables, tapes, steel strips. High-precision tension strain gauge / micro tension sensor is widely used in the fields of electronics, chemical industry, textile and paper making, machinery and industrial automation measurement and control. The width of groove can be customized. The material of guide wheel can be nylon, alloy steel and stainless steel.
Quantity:
High-precision tension strain gauge / micro tension sensor easy to install; suitable for tension measurement of various optical fibers, spinning, chemical fibers, metal wires, wires, cables, tapes, steel strips. High-precision tension strain gauge / micro tension sensor is widely used in the fields of electronics, chemical industry, textile and paper making, machinery and industrial automation measurement and control. The width of groove can be customized. The material of guide wheel can be nylon, alloy steel and stainless steel. ( Single Pulley Tension Sensor, micro tension sensor, tension strain gauge )
LCS7003 Single Pulley Tension Sensor features:
✅ Anti corrosion design, which makes the sensor output linear, fast response;
✅ High stability, strong and durable;
✅ High tension with the same high sensitivity;
✅ According to user requirements can be customized;
✅ Anti corrosion design, which makes the sensor output linear, fast response;
✅ High stability, strong and durable;
✅ High tension with the same high sensitivity;
✅ According to user requirements can be customized;

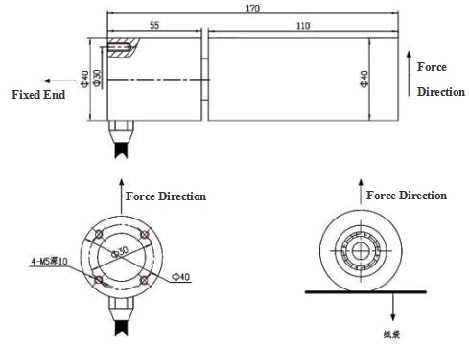

LCS7003 Single Pulley Tension Sensor Dimension:mm
LCS7003 Single Pulley Tension Sensor Technical Parameter:
| Capacity: | 5N~500N | ||
| Rated Output: | 1.5mv/v | Temp.Compensated | -10℃ to+40℃ |
| Zero Balance: | ≤±1% of rated output | Safe Overload | 120%F.S |
| Creep After 30 Minutes: | ≤±0.05% of rated output | Input Impedance | 380Ω±10Ω |
| Nonlinearity: | ≤±0.05of rated output | Output Impedance | 350 Ω±3Ω |
| Hysteresis: | ≤±0.05of rated output | Insulation Resistance | ≥5000MΩ(50VDC) |
| Repeatability: | ≤±0.05of rated output | Rated Excitation | 5~12VDC/AC(10) |
| Temp. effect on output: | ≤0.03% of applied output/℃ | Max. Excitation | 15V DC/AC |
| Temp. Effect on zero: | ≤0.03% of rated output/℃ | Protection Class | IP65 |
| Safe temp. Range: | -20℃ to+70℃ | Load Cell Block | Stainless Steel |
