Single Point Load Cell Mounting
LC3524
Our Aluminium single point load cell mounting is engineered for high-performance benchtop and platform scales. It combines the strength and corrosion resistance of aluminium with precision strain gauge technology. This sensor delivers accurate and reliable weight measurements, making it ideal for various industrial, commercial, and food processing applications. Aluminium single point load cell mounting / hx711 load cell robust yet lightweight design ensures long-term durability and stability, providing excellent value for your weighing needs.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3524
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:0.3Kg~3kg
Material:Aluminum Alloy /Alloy Steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3524
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:0.3Kg~3kg
Material:Aluminum Alloy /Alloy Steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Our Aluminium single point load cell mounting is engineered for high-performance benchtop and platform scales. It combines the strength and corrosion resistance of aluminium with precision strain gauge technology. This sensor delivers accurate and reliable weight measurements, making it ideal for various industrial, commercial, and food processing applications. Aluminium single point load cell mounting / hx711 load cell robust yet lightweight design ensures long-term durability and stability, providing excellent value for your weighing needs. ( single point load cell mounting, hx711 load cell, Aluminium single point load cell mounting )

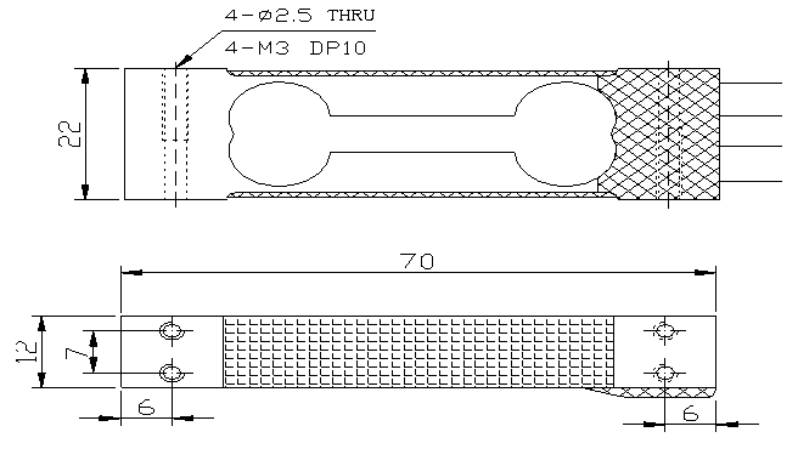

LC3524 Single Point Load Cell mounting Dimension:
LC3524 Single Point Load Cell mounting Technical Parameter:
| Capacity: | 0.3Kg~3kg | Input Resistance: | 405±10Ω |
| Outline Size: | 22×12×70 | Output Resistance: | 350±3Ω |
| Rated Output: | 1.0mv/V±10% | Insulation Resistance: | ≥5000MΩ |
| Zero Balance: | ±5%R.O. | Temperature Compensated: | -10to+40℃ |
| Non-Linearity: | ±0.02%R.O. | Operating Temp. Range: | -20to+60℃ |
| Hysteresis, Non-Repeatability: | ±0.015%R.O. | Recommend Excitation Vol.: | 5~12VDC |
| Creep(5 Minute): | ±0.03%R.O. | Maximum Excitation Vol.: | 18VDC |
| Temp.Compensated For Output: | ±0.03%R.O./10℃ | Safe Overload: | 150%.R.C |
| Temp.Compensated For Zero: | ±0.03%R.O./10℃ | Cable: | 19cm(φ0.8mm) |
