Single Ended Load Cell
LC3511
Our compact strain gauge aluminum single ended load cell / aluminium single ended load cell delivers reliable performance at an exceptional value. Its simple, robust design ensures quick response and stability for basic to moderate accuracy requirements. Easy to integrate and very affordable, The strain gauge aluminum single ended load cell / aluminium single ended load cell is the perfect solution for cost-sensitive consumer handheld scales and portable weighing devices.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3511
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 0.05/0.1kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3511
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 0.05/0.1kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
( single ended load cell, aluminum single ended load cell, single ended load cell aluminium single ended load cell, aluminum single ended load cell, single ended load cell aluminium single ended load cell, aluminum single ended load cell, single ended load cell aluminium )
Our compact strain gauge aluminum single ended load cell / single ended load cell aluminium delivers reliable performance at an exceptional value. Its simple, robust design ensures quick response and stability for basic to moderate accuracy requirements. Easy to integrate and very affordable, The strain gauge aluminum single ended load cell / single ended load cell aluminium is the perfect solution for cost-sensitive consumer handheld scales and portable weighing devices.

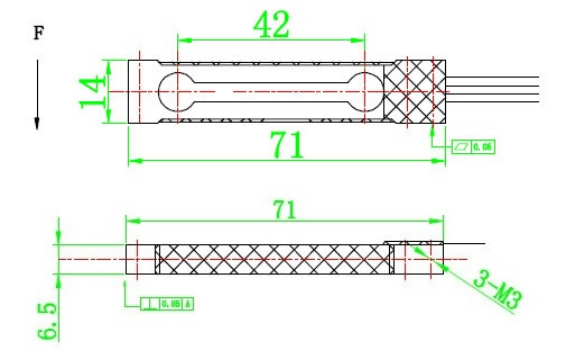

LC3511 Single Ended Load Cell Dimension:
LC3511 Single Ended Load Cell Technical Parameter:
| Model | LC3511 | Temp.Effect on Output | ≤0.05%F.S/10℃ |
| Capacity | 0.05/0.1kg | Zero Output | ±0.5%F.S |
| Comprehensive Error | 0.05 | Input Resistance | 1055±10Ω |
| Output Sensitivity | 0.50±0.15mV/V | Output Resistance | 1000±10Ω |
| Non-linearity | ±0.05%F.S | Insulation Resistance | ≥2000MΩ (50V) |
| Repeatability | ±0.05%F.S | Excitation Voltage | ≤6V |
| Hysteresis | ±0.05%F.S | Operation Temp.Range | -10--+40℃ |
| Creep | ±0.05(3min)%F.S | Overload Capacity | 150%F.S |
| Temp.Effect on Zero | ±2.0%F.S/10℃ | Recommended Use | Handable Scales |
