Single Ended Beam Load Cell
LC3536
Engineered for precision, our aluminum single ended beam load cell / single ended beam load cell aluminum ensures highly accurate and stable measurements in laboratory and quality control environments. Aluminum single ended beam load cell features low creep and minimal temperature drift. Its robust, yet sensitive construction makes it ideal for applications where measurement consistency is critical.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3536
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 50 ~300kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3536
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 50 ~300kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
( single ended beam load cell, aluminum single ended beam load cell, single ended beam load cell aluminumsingle ended beam load cell, aluminum single ended beam load cell, single ended beam load cell aluminum single ended beam load cell, aluminum single ended beam load cell, single ended beam load cell aluminumsingle ended beam load cell, aluminum single ended beam load cell, single ended beam load cell aluminum)
Engineered for precision, our aluminum single ended beam load cell / single ended beam load cell aluminum ensures highly accurate and stable measurements in laboratory and quality control environments. Aluminum single ended beam load cell features low creep and minimal temperature drift. Its robust, yet sensitive construction makes it ideal for applications where measurement consistency is critical.

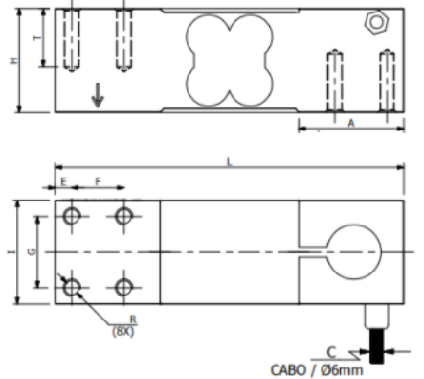

LC3536 Single Ended Beam Load Cell Dimension:
| Cap. | L | E | F | G | H | I | T | A | Cable | R | Weight |
| (kg) | (mm) | (kg) | |||||||||
| 50kg | 167 | 8 | 25 | 34 | 49.5 | 49.5 | 28 | 50.25 | 6m | M8×1.25 | 0.9 |
| 100kg | 167 | 8 | 25 | 34 | 49.5 | 49.5 | 28 | 50.25 | 6m | M8×1.25 | 0.9 |
| 200kg | 167 | 8 | 25 | 34 | 49.5 | 49.5 | 28 | 50.25 | 6m | M8×1.25 | 0.9 |
| 300kg | 167 | 8 | 25 | 34 | 49.5 | 49.5 | 28 | 50.25 | 6m | M8×1.25 | 0.92 |
LC3536 Single Ended Beam Load CellTechnical Parameter:
| Rated Load: | 50/100/200/300kg | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 380±10Ω | Element Material: | A,SS: Alloy /Alluminum Steel |
| Output Resistance: | 350±3Ω | Cable: | Length=L:6m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
