Single Beam Load Cell
LC3509
This Handable Scales single beam load cell / Handable Scales Load Cell is engineered for handheld scales, prioritizing precision and durability in a compact, lightweight design. It delivers accurate readings even under dynamic conditions, ensuring reliability for portable weighing solutions. Its robust build withstands the rigors of daily use, making Handable Scales single beam load cell / Handable Scales Load Cell the ideal core sensor for mobile and handheld measurement devices.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3509
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 20 ~200g
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3509
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 20 ~200g
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This Handable Scales single beam load cell / Handable Scales Load Cell is engineered for handheld scales, prioritizing precision and durability in a compact, lightweight design. It delivers accurate readings even under dynamic conditions, ensuring reliability for portable weighing solutions. Its robust build withstands the rigors of daily use, making Handable Scales single beam load cell / Handable Scales Load Cell the ideal core sensor for mobile and handheld measurement devices. ( single beam load cell, Handable Scales Load Cell, Handable Scales single beam load cell )

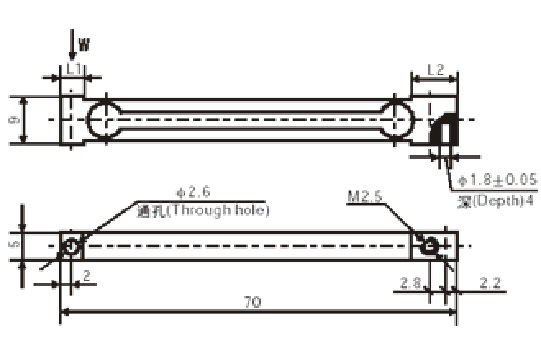

LC3509 Single Beam Load Cell Dimension:
LC3509 Single Beam Load Cell Technical Parameter:
| Model | LC3509 | Temp.Effect on Output | ≤0.05%F.S/10℃ |
| Capacity | 20/30/50/100/200g | Zero Output | ±0.5%F.S |
| Comprehensive Error | 0.05 | Input Resistance | 1055±10Ω |
| Output Sensitivity | 0.50±0.15mV/V | Output Resistance | 1000±10Ω |
| Non-linearity | ±0.05%F.S | Insulation Resistance | ≥2000MΩ (50V) |
| Repeatability | ±0.05%F.S | Excitation Voltage | ≤6V |
| Hysteresis | ±0.05%F.S | Operation Temp.Range | -10--+40℃ |
| Creep | ±0.05(3min)%F.S | Overload Capacity | 150%F.S |
| Temp.Effect on Zero | ±2.0%F.S/10℃ | Recommended Use | Handable Scales |
