Side Loading Shackles
LC7506
The wireless compression load cell / load cells for sale is a High Strength cable Load Cell manufactured with a Load Pin. The cable Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The Shackle wireless compression load cell is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection.
Quantity:
The wireless compression load cell / load cells for sale is a High Strength cable Load Cell manufactured with a Load Pin. The cable Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The Shackle wireless compression load cell is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection.. ( side loading shackles, wireless compression load cell,load cells for sale )
✅ Ranges from 3 to 500 Ton
✅ Integrated 2-wire signal amplifier, 4-20mA
✅ Robust design in stainless steel
✅ Designed for Harsh Environments
✅ Designed to be compatible with existing standards
✅ Easy to install and maintain
The electronics are molded and encapsulated inside the load cell, proven to be the best solution for EMC, potential leakage and long lifetime performance.
LC7506 Side Loading Shackles Specifications:
| Capacity: | 3t~500t |
| Safety Overload: | 150% of rated load |
| Protection Class: | IP66 |
| Bridge Impedance: | 350ohm |
| Power Supply: | 5-10V |
| Combined Error(Non-linearity+Hysteresis): | 1 to 2% |
| Operating Temperature: | -25℃ to +80℃ |
| Storage Temperature: | -55℃ to +125℃ |
| Temperature Influence on zero: | ±0.02%K |
| Temperature Influence on Sensitivity: | ±0.02%K |

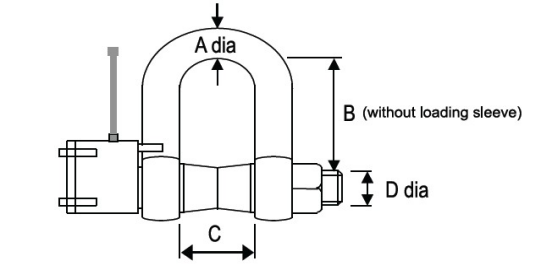

LC7506 Side Loading Shackles Dimnension:
| Full Load | Max. Proof Load | Normal Size ‘A’ | Inside Length‘B’ | Inside Width ‘C’ | Bolt | Unit Weight |
| Dia. ‘D’ | ||||||
| (Ton) | (Ton | (mm) | (Kg) | |||
| 3t | 4.2 | 25 | 85 | 43 | 28 | 3 |
| 6t | 8 | 25 | 85 | 43 | 28 | 3 |
| 10t | 14 | 32 | 95 | 51 | 35 | 6 |
| 17t | 23 | 38 | 125 | 60 | 41 | 10 |
| 25t | 34 | 45 | 150 | 74 | 51 | 15 |
| 35t | 47 | 50 | 170 | 83 | 57 | 22 |
| 50t | 67 | 65 | 200 | 105 | 70 | 40 |
| 75t | 100 | 75 | 230 | 127 | 83 | 60 |
| 100t | 134 | 89 | 270 | 146 | 95 | 100 |
| 120t | 150 | 90 | 290 | 154 | 95 | 130 |
| 150t | 180 | 104 | 330 | 155 | 108 | 170 |
| 200t | 320 | 152 | 559 | 184 | 121 | 215 |
| 300t | 480 | 172 | 683 | 213 | 152 | 364 |
| 500t | 800 | 184 | 813 | 210 | 178 | 520 |
Note: All dimensions are subject to change according actual use as a standard.
Applications:
✅ Cable recovery/repair
✅ Vehicle lifting
✅ Wave generator mooring/tethering
✅ Offshore wind cable installations
✅ Bollard Pull and Certification
✅ Cable Laying
