Shear Pin Load Cell
LC7499
Shear Pin Load Cell force measurement– Precision Force Measurement
Shear Pin Load Cell / Multi-Axis Load Pin are high-accuracy load cells designed for force measurement in harsh environments. Made from durable stainless steel, they offer reliable performance under heavy loads.Shear Pin Load Cell force measurement ideal for cranes, hoists, and industrial machinery, Shear Pin Load Cell force measurement provide real-time data with excellent overload protection. Waterproof and corrosion-resistant, they ensure long-term stability. Easy to install and maintain, Shear Pin Load Cell force measurement enhance safety and efficiency in demanding applications. Trusted globally for robust and precise force monitoring.
Shear Pin Load Cell / Multi-Axis Load Pin are high-accuracy load cells designed for force measurement in harsh environments. Made from durable stainless steel, they offer reliable performance under heavy loads.Shear Pin Load Cell force measurement ideal for cranes, hoists, and industrial machinery, Shear Pin Load Cell force measurement provide real-time data with excellent overload protection. Waterproof and corrosion-resistant, they ensure long-term stability. Easy to install and maintain, Shear Pin Load Cell force measurement enhance safety and efficiency in demanding applications. Trusted globally for robust and precise force monitoring.
Quantity:
Shear Pin Load Cell force measurement– Precision Force Measurement
Shear Pin Load Cell / Multi-Axis Load Pin are high-accuracy load cells designed for force measurement in harsh environments. Made from durable stainless steel, they offer reliable performance under heavy loads.Shear Pin Load Cell force measurement ideal for cranes, hoists, and industrial machinery, Shear Pin Load Cell force measurement provide real-time data with excellent overload protection. Waterproof and corrosion-resistant, they ensure long-term stability. Easy to install and maintain, Shear Pin Load Cell force measurement enhance safety and efficiency in demanding applications. Trusted globally for robust and precise force monitoring. ( shear pin load cell, Multi-Axis Load Pin, load cell force measurement )

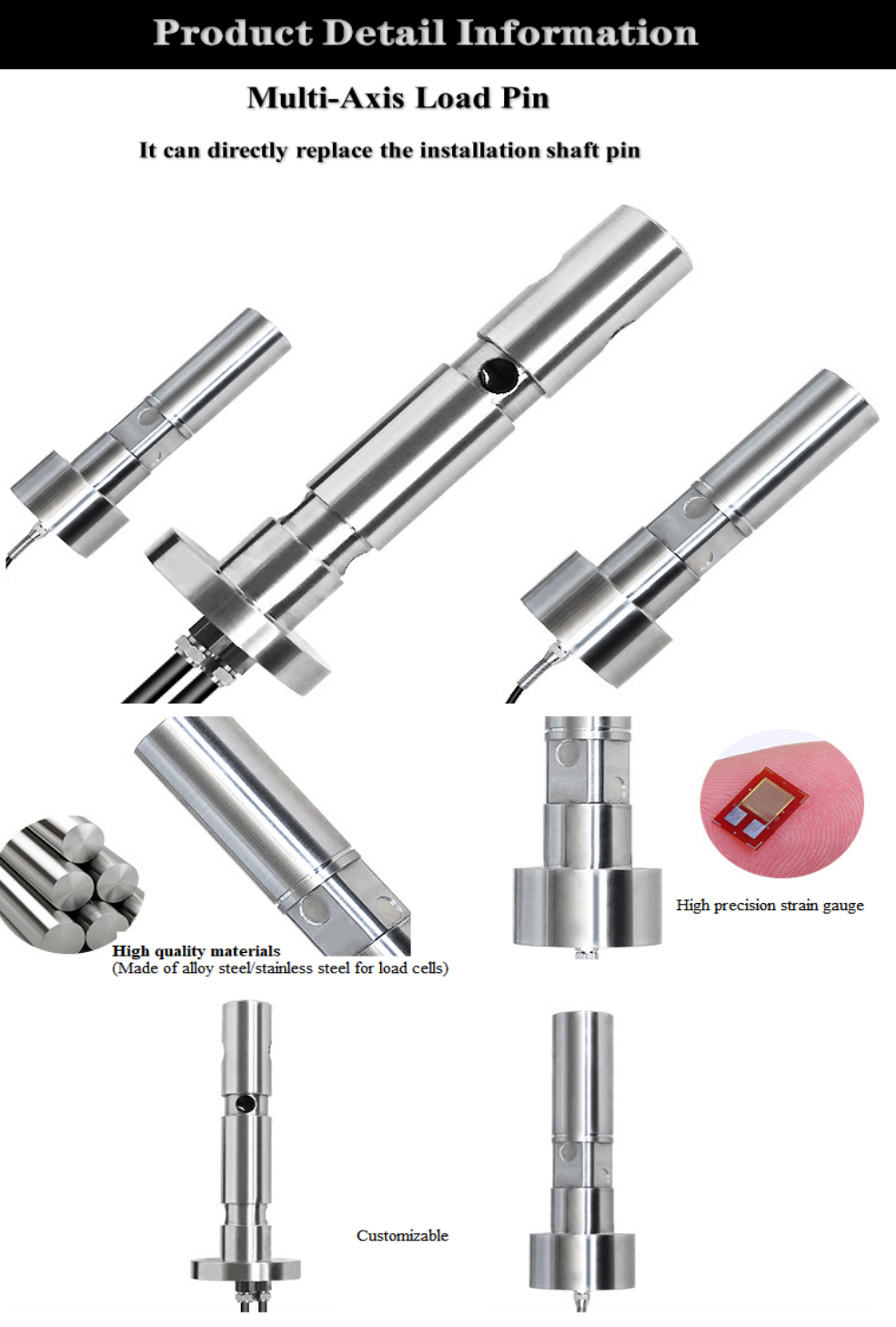

The Shear Pin Load Cell force measurement pivot pin design structure is adopted, and the force values in two directions are measured at the same time. The installation is simple and can directly replace the installation of shaft pin. It is widely used in the force value detection of connecting mechanisms in the fields of aerospace, robot, lifting equipment, automobile and mechanical automation.

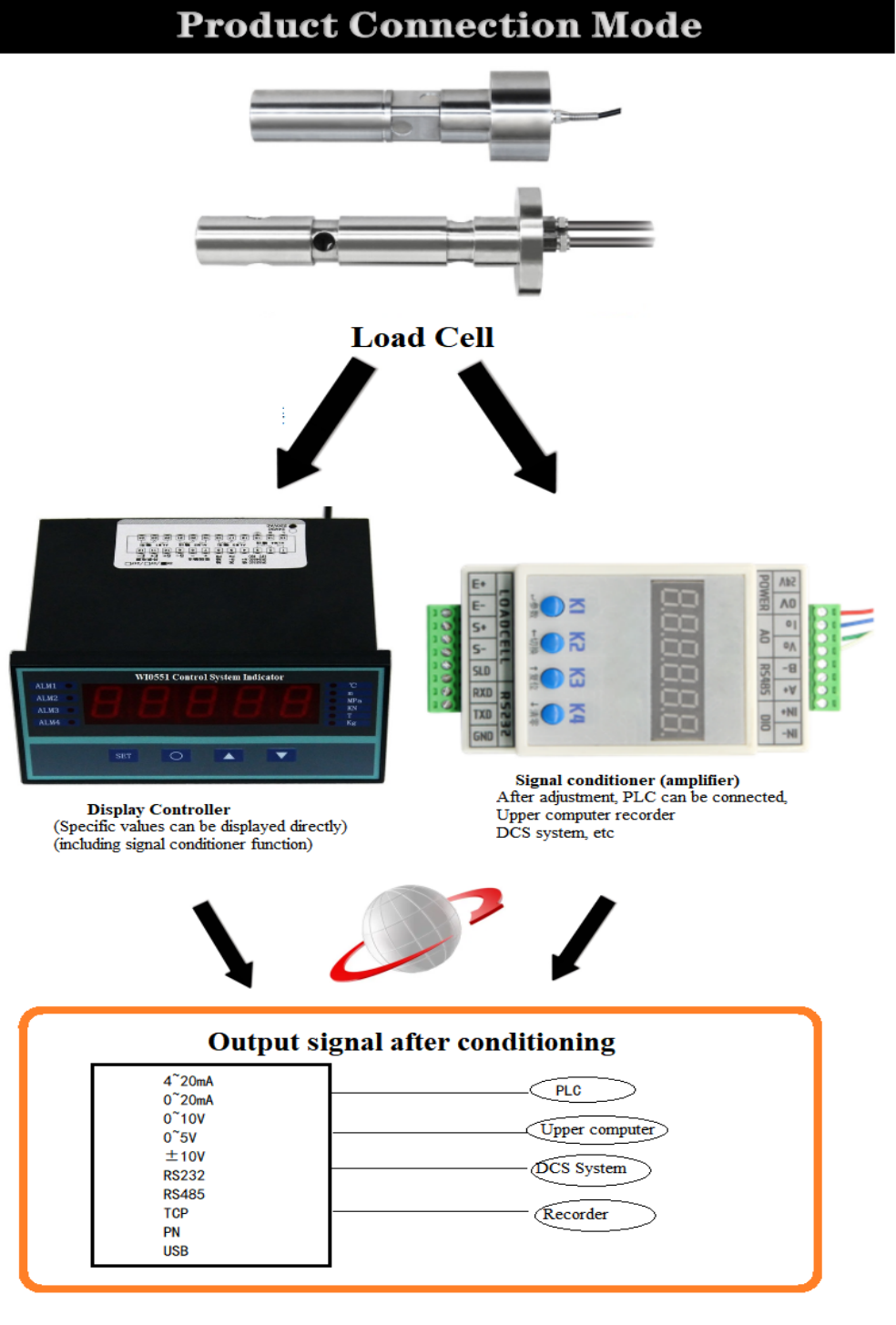

Integrated standard signal output can be selected, three wire system or four wire system, with output of 0~5V, 0~10V, or 4~20mA. Power supply: 12V or 24V.

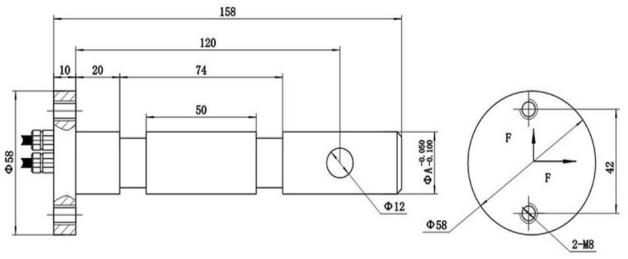

LC7499 Shear Pin Load Cell Dimension:
Shear Pin Load Cell Applications:
✅ Marine tankers, offshore platforms;
✅ Elevator and floor conveyor testing and certification;
✅ Bearing blocks, pivots and shackles;
✅ Cable laying equipment;
✅ Rope, Chain and brake anchors;
✅ Bridge support cables;
✅ Mooring lines;
✅ Pulleys and sheaves;
✅ Crane cables;
✅ Hoisting gear;
✅ Winches;
LC7499 Shear Pin Load Cell Technical Parameter:
| Sensitivity: | 1.0~1.5mV/V nominal (dependent on range) | ||
| Rated Load: | X:50kg~2t | ||
| Y:50kg~2t | |||
| Combined Error: | ±0.02% F.S | Operating Temp. Range: | -10~+70℃ |
| Creep Error(30min): | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load:: | 300%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 5~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 10V DC |
| Input Resistance: | 380±30Ω/730±30Ω | Sealing Class: | IP67/68 |
| Output Resistance: | 350±3Ω/700±3Ω | Element Material: | Alloy /Stainless Steel |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:1~20m |
Please note:If you require a load pin to a particular size and design, please contact with us (price on application). Wireless Load Pins available (price on application).
