Shear Load Cell
LC348-2
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC348
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~10000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC348
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~10000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
shear load cell, beam load cell, beam type load cell shear load cell, beam load cell, beam type load cell shear load cell, beam load cell, beam type load cell shear load cell, beam load cell, beam type load cell
Ningbo Saintbond is a leading Chinese manufacturer of weighing beam type load cells, renowned for its high-precision, stable, and durable beam type load cells. These products are core components in industrial weighing, process control, and force measurement systems. The core lineup includes shear beam type load cells and beam load cells, designed to meet diverse application demands.
Beam Load Cell Dimension:mm
| Cap.Size | L | L1 | L2 | L3 | L4 | B/H | H1 | D1 | ΦD | M |
| (Ton) | ( mm ) | |||||||||
| 0.1~0.5t | 130 | 54 | 12.7 | 25.4 | 76.2 | 34 | 32 | 12.8 | 13.5 | M12 |
| 1~3t | 130 | 54 | 12.7 | 25.4 | 76.2 | 34 | 32 | 12.8 | 13.5 | M16 |
| 3~5t | 171.5 | 77 | 19.1 | 38.1 | 95.3 | 40 | 38 | 20 | 20 | M18x1.5 |
| 7.5~10t | 225.5 | 102 | 25.3 | 50.8 | 124 | 50.8 | 48.8 | 27 | 27 | M24 x2 |
| Cap.Size | L | L1 | L2 | L3 | L4 | ΦD | H |
| ( t ) | ( mm ) | ||||||
| 0.1~0.5t | 130 | 54 | 12.7 | 25.4 | 76.2 | 13.5 | 74~84 |
| 1~3t | 130 | 54 | 12.7 | 25.4 | 76.2 | 13.5 | 74~84 |
| 3~5t | 171.5 | 77 | 19.1 | 38.1 | 95.3 | 20 | 82~92 |
| 7.5~10t | 223 | 100 | 25 | 50.8 | 120 | 25 | 92~102 |
Beam Load Cell Technical Parameter:
| Rated Load: | 0.1/0.2/0.3/0.5/1/2/3/5/7.5/10t | ||
| Sensitivity: | (2.0±0.1%) m V/V, | Operating Temp. Range: | -30~+70℃ |
| (3.0±0.1%) mV/V | |||
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
LC348 Shear Load Cell Key Features:
Compact & High Sensitivity: Ideal for low-capacity, high-precision measurements.
Flexible Installation: Can be used in both tension and compression modes.
Cost-Effective:Offers high value for money in low to medium capacity ranges.
Compact & High Sensitivity: Ideal for low-capacity, high-precision measurements.
Flexible Installation: Can be used in both tension and compression modes.
Cost-Effective:Offers high value for money in low to medium capacity ranges.
LC348 Shear Load Cell Applications:
þ Bench scales, bagging scales, packaging machines, crane scales.
þ Belt weighers, batching systems.
þ Small platform scales and force measurement.
þ Bench scales, bagging scales, packaging machines, crane scales.
þ Belt weighers, batching systems.
þ Small platform scales and force measurement.
Ningbo Saintbond's shear beam and bending beam load cells provide a comprehensive industrial weighing solution with reliable quality, excellent environmental adaptability, and strong cost-effectiveness. They are a trusted choice for building new systems or upgrading existing equipment across various industries and capacity ranges.
For specific model datasheets, detailed specifications, or customized solutions, please contact Ningbo Saintbond directly or their authorized distributors.

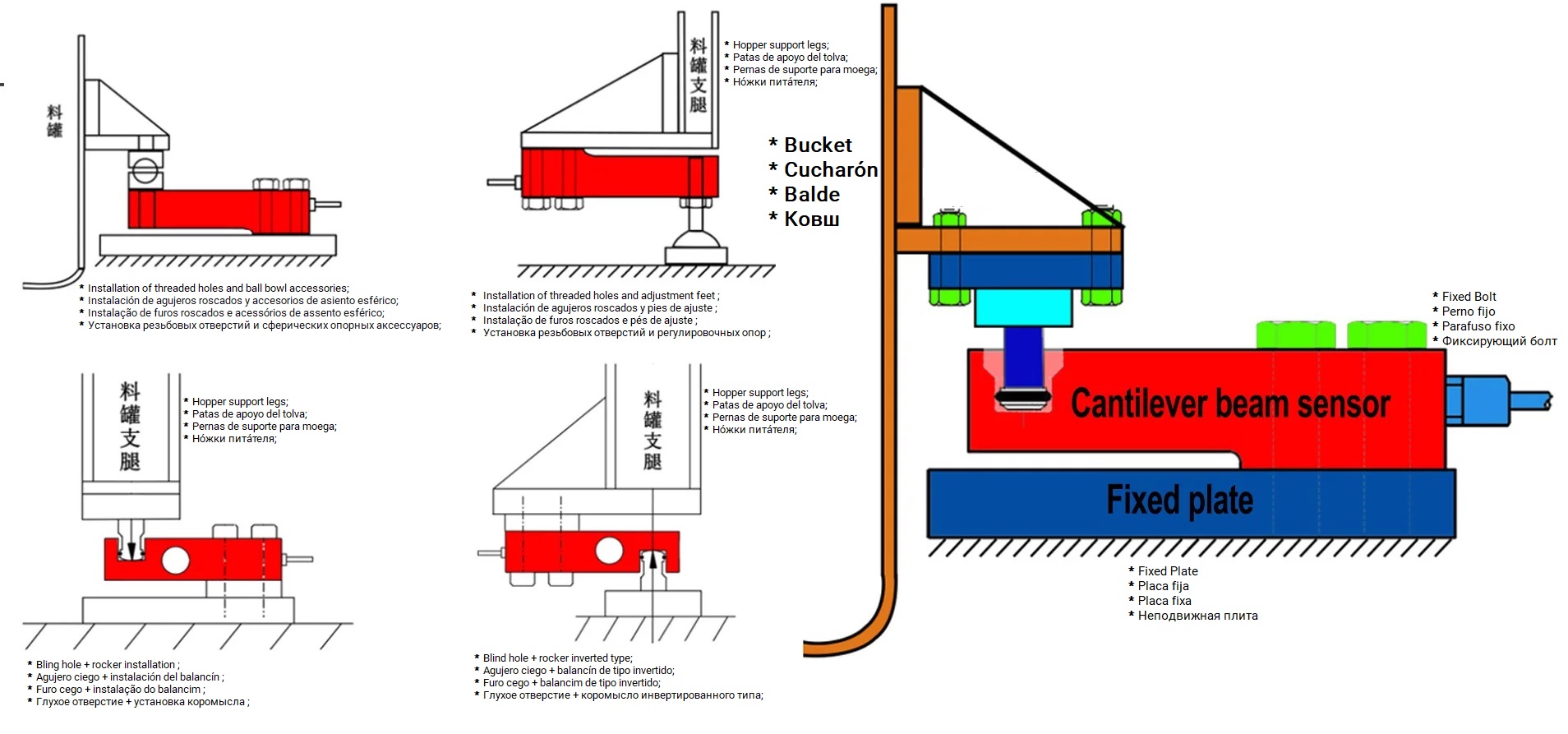

LC348 Shear Load Cell Examples of Use Cases:
