Shear Beam Type Load Cell
LC3008
The shear beam type load cell /load cell beam with Dual Output Cables is a high-precision, robust load cell force weight engineered for critical applications where system redundancy and operational safety are paramount, is the cornerstone of reliable and safe weighing solutions. It incorporates two independent electrical output signals from a single sensing element, providing a reliable solution for dual-channel safety systems, backup monitoring, and fail-safe control.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC3008
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1000~6000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC3008
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1000~6000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Week
Country of Origin
China
Stock Time
35Day
Quantity:
shear beam type load cell, load cell beam, load cell force weight shear beam type load cell, load cell beam, load cell force weight shear beam type load cell, load cell beam, load cell force weight shear beam type load cell, load cell beam, load cell force weight
The shear beam type load cell /load cell beam with Dual Output Cables is a high-precision, robust load cell force weight engineered for critical applications where system redundancy and operational safety are paramount, is the cornerstone of reliable and safe weighing solutions. It incorporates two independent electrical output signals from a single sensing element, providing a reliable solution for dual-channel safety systems, backup monitoring, and fail-safe control.

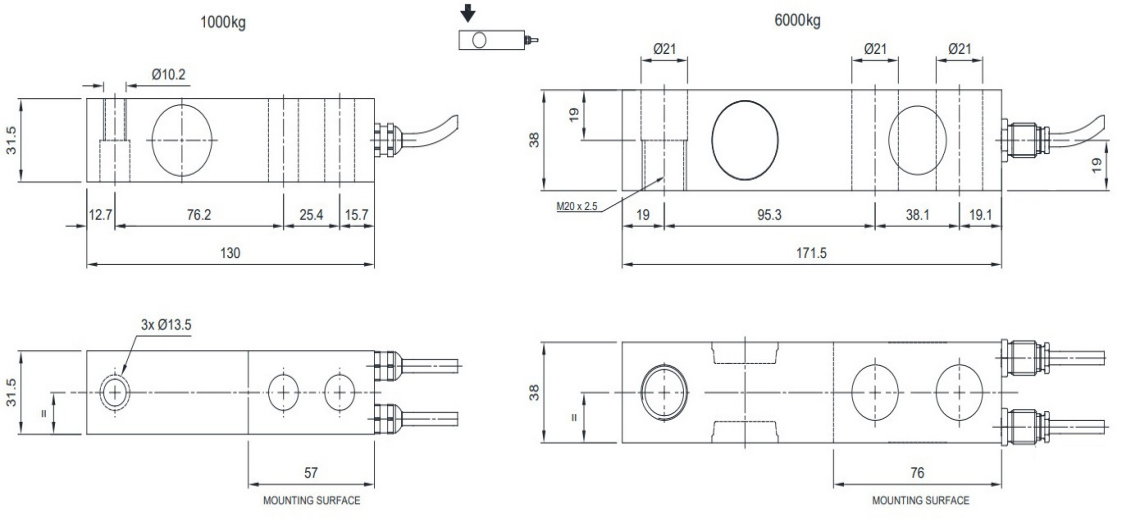

LC3008 Shear Beam type Load Cell Dimension:mm
LC3008 Shear Beam type Load Cell Technical Parameter:
| Rated Load: | 1000~6000kg | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | L:3m~10m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIMLR60 |
