Shear Beam Load Cells
LC3009
Shear Beam Load Cells / beam load cell mounting – Precise & Robust Weighing Solution
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC3009
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~5000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC3009
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~5000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
35Day
Quantity:
shear beam load cells, beam load cell mounting, sk30x shear beam load cells, beam load cell mounting, sk30x shear beam load cells, beam load cell mounting, sk30x shear beam load cells, beam load cell mounting, sk30x
Shear Beam Load Cells / beam load cell mounting – Precise & Robust Weighing Solution
Ningbo Saintbond is a professional manufacturer specializing in the design and production of high-precision weighing sensors and systems. Our shear beam load cells represent a core product line, engineered for reliability, accuracy, and durability in demanding industrial environments.
The Shear Beam Load Cells is a high-performance, precision force sensor designed for accurate weighing and force measurement in industrial applications. Utilizing the shear force principle, it offers excellent stability, durability, and resistance to off-center and side loads, making it ideal for platform scales, tank and hopper weighing, conveyor systems, and process control.

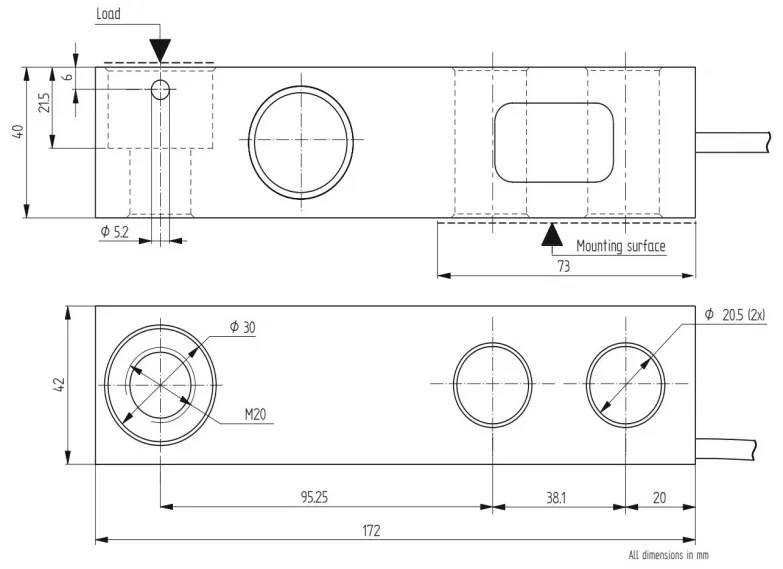

LC3009 Shear Beam Load Cells Dimension:mm
LC3009 Shear Beam Load Cells Dimension: mm
| Rated Load: | 500 / 5000kg | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | L:3m~10m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIMLR60 |
LC3009 Shear Beam Load Cells Typical Applications:
þHoppers, tanks, mixers or conveyors;
þBeverages and food;
þMining, metals and minerals;
þChemistry / Pharmaceuticals;
þ Waste management / recycling;
þPackaging technology;
þHoppers, tanks, mixers or conveyors;
þBeverages and food;
þMining, metals and minerals;
þChemistry / Pharmaceuticals;
þ Waste management / recycling;
þPackaging technology;
We are committed to providing our global customers with high-value weighing solutions backed by strong technical support. Our shear beam load cells are built to deliver consistent performance, reduce maintenance needs, and ensure the longevity of your weighing equipment.
Choose Ningbo Saintbond for your critical weighing applications. Contact us or browse our catalog to find the perfect shear beam load cell model for your needs.
