Sensor Tension
LCS7000
Tensile sensor / tension load cell sensor, made of aluminium alloy, resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, low tension can also be accurately measured. A variety of installation methods: stack or hole type, can meet various installation needs.Tensile sensor / tension load cell sensor for a textile machine used for tension detection between unwinding, winding and moving, including wire, wire, glass fiber, rubber and composite materials.
Quantity:
Tensile sensor / tension load cell sensor, made of aluminium alloy, resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, low tension can also be accurately measured. A variety of installation methods: stack or hole type, can meet various installation needs.Tensile sensor / tension load cell sensor for a textile machine used for tension detection between unwinding, winding and moving, including wire, wire, glass fiber, rubber and composite materials. ( sensor tension, tensile sensor, tension load cell sensor )
LCS7000 Sensor Tension Product features:
✅ Anti corrosion design, which makes the sensor output linear, fast response;
✅ High stability, strong and durable;
✅ High tension with the same high sensitivity;
✅ According to user requirements can be customized;
✅ Anti corrosion design, which makes the sensor output linear, fast response;
✅ High stability, strong and durable;
✅ High tension with the same high sensitivity;
✅ According to user requirements can be customized;

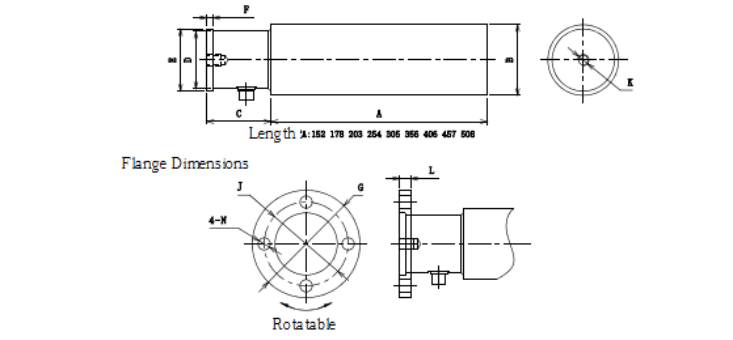

LCS7000 Sensor Tension Dimension:mm
| Capacity | Dimension(mm) | ||||||||||
| A | B | C | D | E | F | G | J | K | L | N | |
| 53/111/222/300445N | 152-406 | 75 | 68 | 61 | 66 | 6.8 | 114 | 89 | M12 | 12 | 13 |
| 178-508 | 88 | 68 | 64 | 66 | 6.8 | 114 | 89 | M16 | 12 | 13 | |
LCS7000 Sensor Tension Installation Mode:
LCS7000 Sensor Tension Technical Parameter:
| TSensor008: | 53/111/222/445N(12/25/50/100Lbs) | ||
| Width of roller surface: | 152/178/203/254/305/356/406/457/508mm | ||
| (6/7/8/10/12/14/16/18/20Inches) | |||
| Power Supply: | DC5-15V | Linear Error: | <±0.1% |
| Output Signal: | 0-20mA/4-20mA | Repeatability Error: | <±0.1% |
| Temp. Drift | <±0.02%℃ | Combined Error: | <±0.1% F.S |
| Joint Specification: | Aviation plugs-12 | Operating Temp. Range: | -38~+75℃ |
| Roller material: | 6061aluminum | Working humidity Range: | <90%R.H. |
| Material for Shaft Core and Base: | Alloy Steel | ||
