Safe T Weigh
LC2011-2
Welcome to Ningbo Saintbond, a leading manufacturer of high-precision force measurement equipment. Our core product, the op 312 Safe T Weigh Load Cell 200kg, is engineered for accuracy, durability, and versatility in a wide range of industrial applications.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2011
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5kg ~ 5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2011
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5kg ~ 5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg op 312, safe t weigh, load cell 200kg
Welcome to Ningbo Saintbond, a leading manufacturer of high-precision force measurement equipment. Our core product, the op 312 Safe T Weigh Load Cell 200kg, is engineered for accuracy, durability, and versatility in a wide range of industrial applications.
What is an op 312 Safe T Weigh Load Cell?
An op 312 Safe T Weigh Load Cell, named for its distinctive"S"shape, is a highly versatile strain-gauge based sensor designed to measure both tension and compression forces. Its compact and robust design makes it the ideal choice for applications where space is limited and reliable performance is critical.
An op 312 Safe T Weigh Load Cell, named for its distinctive"S"shape, is a highly versatile strain-gauge based sensor designed to measure both tension and compression forces. Its compact and robust design makes it the ideal choice for applications where space is limited and reliable performance is critical.
LC2011 Safe T Weigh Load Cell Technical Parameter:
| Capacity | 5kg ~ 5t | Output Impedance | 350±5Ω |
| Rated output | 2.0±10%mV/V | Input Impedance | 350±20Ω |
| Zero Output | ±1%F.S. | Insulation | >5000MΩ/10VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Excitation max | 10V |
| Repeatability | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Creep(30min) | 0.03%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.03% F.S./10ºC | Ultimate overload | 200% |
| Temp.effect on zero | 0.05% F.S./10ºC | Material | Alloy /Stainless steel |

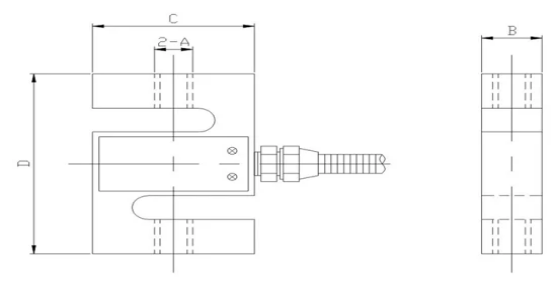

LC2011 Safe T Weigh Load Cell Dimension:mm
| Capacity | A | B | C | D |
| (kg) | (mm) | |||
| 5-50kg | M8 X 1.25 | 12.7 | 50.8 | 63.5 |
| 100-300kg | M12 X1.75 | 19 | 50.8 | 76.2 |
| 500kg-1t | M12X1.75 | 25.4 | 50.8 | 76.2 |
| 2t-5t | M18 X1.5 | 25.4 | 76.2 | 108 |
LC2011 Safe T Weigh Load Cell Typical Applications:
Our op 312 Safe T Weigh Load Cell are deployed across numerous industries:
þ Industrial Weighing: Hopper & silo scales, tank weighing, platform scales, belt weighers.
þ Force Monitoring: Crane and hoist overload protection, tension control systems.
þ Test & Measurement: Material testing machines, structural load monitoring.
þ Process Control: Robotic arm feedback, web tension in printing/textile.
Our op 312 Safe T Weigh Load Cell are deployed across numerous industries:
þ Industrial Weighing: Hopper & silo scales, tank weighing, platform scales, belt weighers.
þ Force Monitoring: Crane and hoist overload protection, tension control systems.
þ Test & Measurement: Material testing machines, structural load monitoring.
þ Process Control: Robotic arm feedback, web tension in printing/textile.
Why Choose Ningbo Saintbond op 312 Safe T Weigh Load Cell?
At Ningbo Saintbond, we don't just manufacture load cells; we engineer precision, reliability, and value into every op 312 Safe T Weigh Load Cell we produce. In a market filled with options, here is why we are the trusted partner for OEMs, system integrators, and industries worldwide.
At Ningbo Saintbond, we don't just manufacture load cells; we engineer precision, reliability, and value into every op 312 Safe T Weigh Load Cell we produce. In a market filled with options, here is why we are the trusted partner for OEMs, system integrators, and industries worldwide.
Choose Ningbo Saintbond for LC2011 op 312 Safe T Weigh Load Cell that deliver performance you can count on and value that makes a difference.
Contact us today to discuss your requirements and experience the Saintbond advantage.
LC2011 Safe T Weigh Load Cell Internal Product Structure and Optional Accessories:
