s type load cell manufacturers
LC2309
The Saintbond s type load cell manufacturers is a high-precision strain gauge sensor designed for tension and compression measurements. Precision load cell 20 kg ideal for industrial scales, hoppers, and force monitoring, Precision load cell 20 kg features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments.
Quantity:
The Saintbond s type load cell manufacturers is a high-precision strain gauge sensor designed for tension and compression measurements. Precision load cell 20 kg ideal for industrial scales, hoppers, and force monitoring, Precision load cell 20 kg features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments. ( s type load cell manufacturers, load cell 20 kg, Saintbond s type load cell manufacturers )

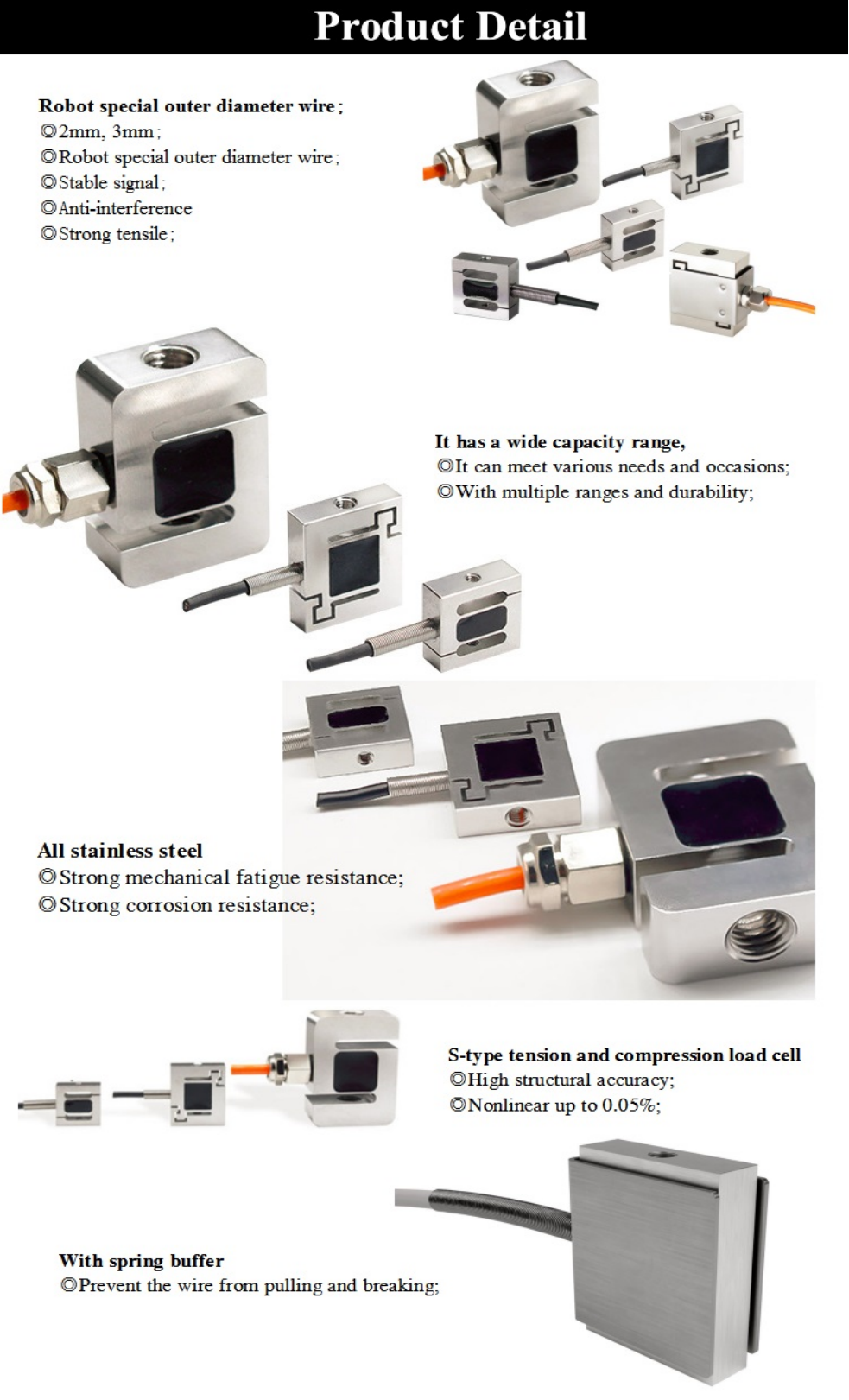

Product Description:
✅ S beam structure,small size;
✅ Strain gauge technology,high accuracy;
✅ Compression tension force measurement;
Applications:
General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.

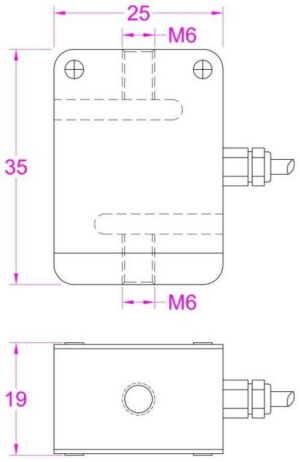

Dimension:
Technical Parameter:
| Capacity | 1/2/3/5/10/20/30/50kg | ||
| Rated output | 1.8-2.2mV/V | Material | Aluminum |
| Non-linearity | ±0.05 % F.S. | Output Impedance | 350±5Ω |
| Hysteresis | ±0.05% F.S. | Insulation | >5000MΩ/10VDC |
| Repeatability | ±0.03% F.S. | Recommended Excitation | 2.5-5V |
| Creep(30min) | ±0.03% F.S. | Excitation max | 10V |
| Temp Effect On Output | 0.05 % F.S./ 10℃ | Compensated Temp Range | -10~60℃ |
| Temp Effect On Zero | 0.05% F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Protection Class | IP 65 | Safe Load | 1.2 |
| Input Impedance | 385±50Ω | Ultimate Load Limit | 1.5 |
