S Type Load Cell Compression
LC2308
The Saintbond precision load cell is a high-precision strain gauge sensor designed for tension and compression measurements. Precision load cell ideal for industrial scales, hoppers, and force monitoring, Precision load cell features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments.
Quantity:
The Saintbond precision load cell is a high-precision strain gauge sensor designed for tension and compression measurements. Precision load cell ideal for industrial scales, hoppers, and force monitoring, Precision load cell features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments. ( s type load cell compression, precision load cell, Saintbond precision load cell )
LC2308 S Type Load Cell Compression Features:
✅ Compact, easy to install
✅ High measuring accuracy, is the preferred type of small range pull pressure sensor
✅ Suitable for tension measurements, batching systems, industrial scales and package systems, etc

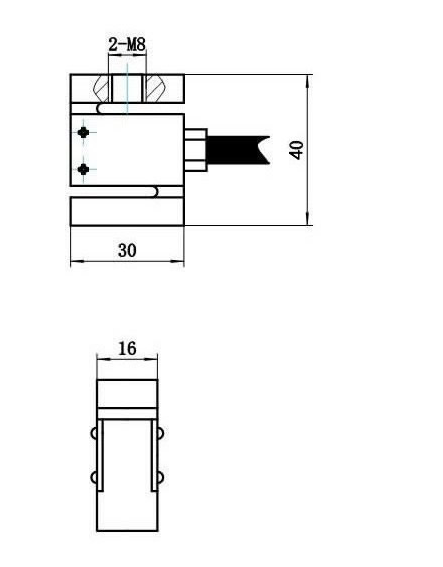

LC2308 S Type Load Cell Compression Dimension:
LC2308 S Type Load Cell Compression Technical Parameter:
| Capacity: | 1/2/3/5/10/20/30/50/100kg | ||
| Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep After 30 Minutes: | ±0.1% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.1% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Hysteresis: | ±0.1% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Repeatability: | ±0.1% of rated output | Rated Excitation: | 10V DC/AC |
| Temp. Effect On Output: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
| Temp. Effect On Zero: | ≤0.02% of applied output/ºC | ||
