S Style Load Cell
LC255
The LC255 S Style Load Cell offers a wide range of capacities, extending from 50kg to 7,500kg. Constructed from alloy steel with an electroless nickel-plated surface, it's a robust and reliable choice and an economical alternative to our popular LC255 Saintbond load cell types. Suspended tanks and hoppers, crane scale. Suitable for general applications in the process weighing and process automation and control sectors.
Quantity:
The LC255 S Style Load Cell offers a wide range of capacities, extending from 50kg to 7,500kg. Constructed from alloy steel with an electroless nickel-plated surface, it's a robust and reliable choice and an economical alternative to our popular LC255 Saintbond load cell types. Suspended tanks and hoppers, crane scale. Suitable for general applications in the process weighing and process automation and control sectors. ( s style load cell, load cell types, Saintbond load cell types )
LC255 S Style Load Cell Features:
✅ Rod end load cell,s beam structure;
✅ Strain gauge technology,analog output;
✅ Tension and compression force measurement;
✅ Widely used for testing machine,press force test,keyboard testing,auto equipment,production line,press machine.etc;

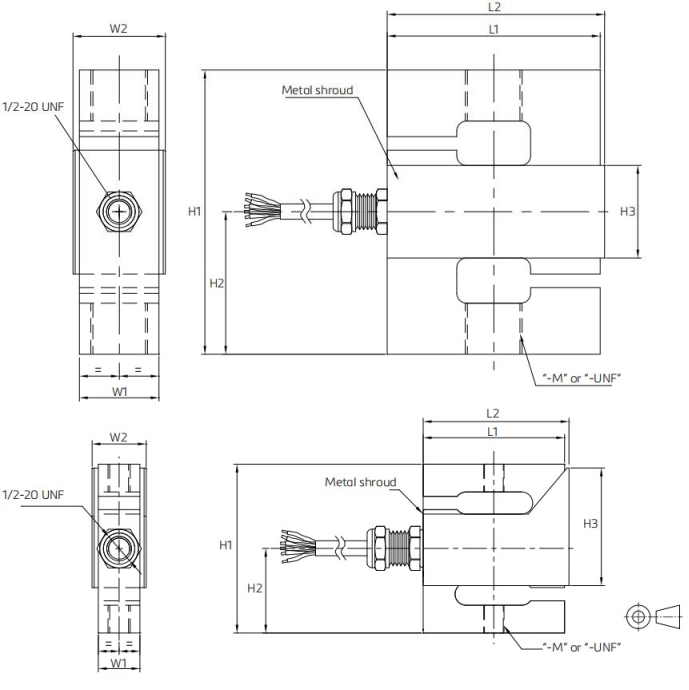

LC255 S Style Load Cell Dimension:
LC255 S Style Load Cell Technical Parameter:
| Rated Load: | 20/100/200/300/500/750kg/1/2/3/5/10t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error (30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | CE |
