S Load Cell
LC201B
The Saintbond S load cell is a high-precision strain gauge sensor designed for tension and compression measurements. S load cell for weighing scale ideal for industrial scales, hoppers, and force monitoring, it features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments.
Quantity:
The Saintbond S load cell is ahigh-precision strain gauge sensor designed for tension and compression measurements. S load cell for weighing scale ideal for industrial scales, hoppers, and force monitoring, it features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments. ( s load cell, Saintbond s load cell, load cell for weighing scale )
LC201 S Load Cell Product Features:
✅ Alloy steel, nickel plated, S-shaped structure, rubber sealed, pull or press bearing;
✅ Protection grade ip67/ip68

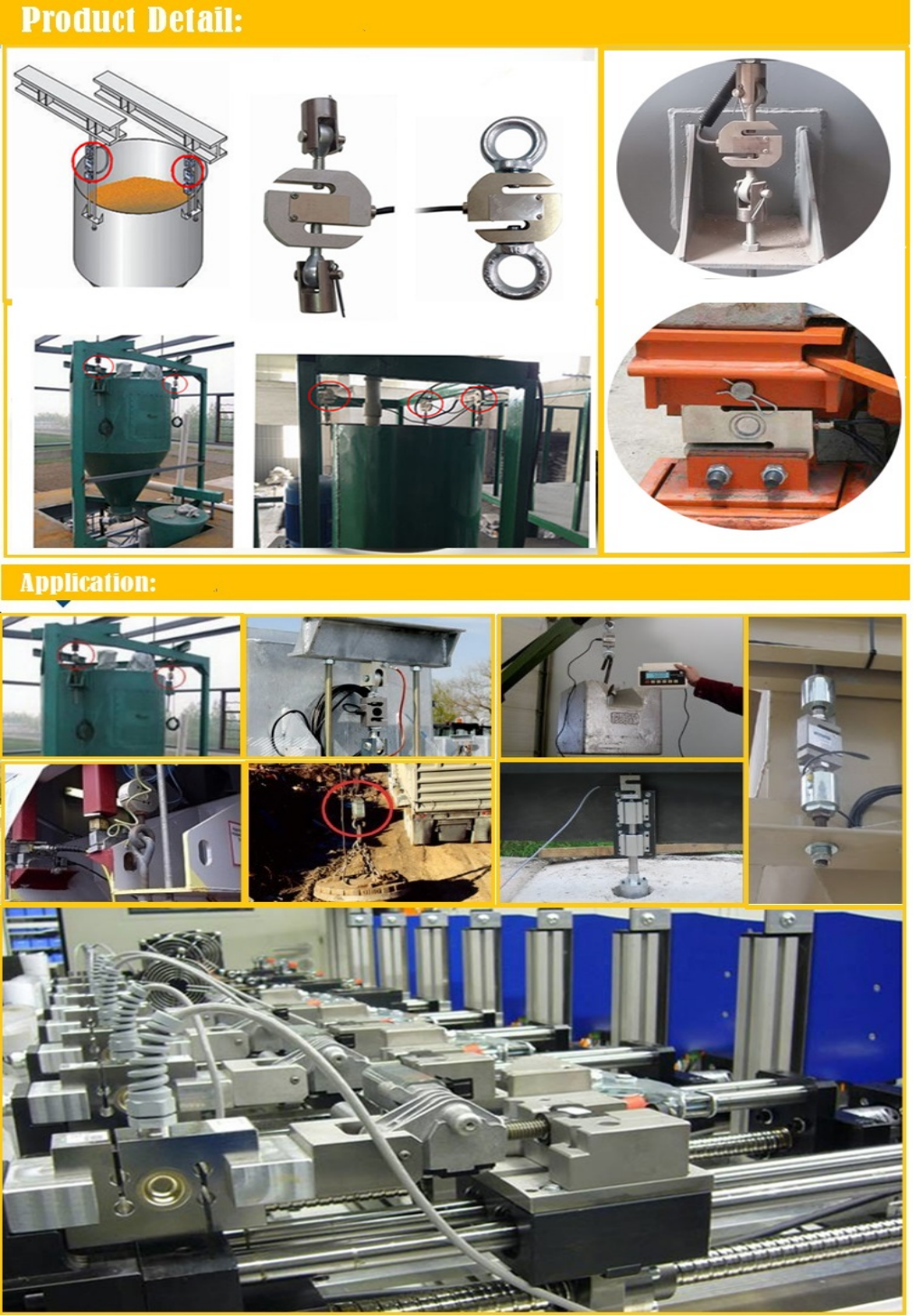

✅ Hook scale, machine change scale, hopper scale and other electronic weighing equipment;

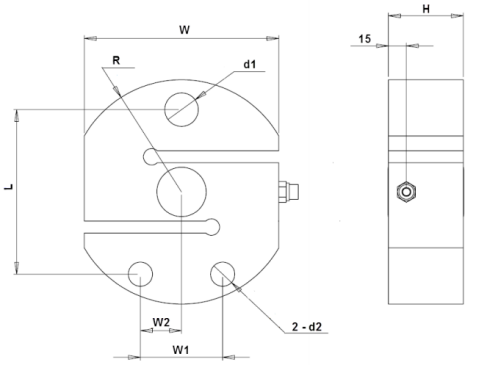

LC201 S Load Cell Dimension:
| Cap. | W | W1 | W2 | L | R | H | Φd1 | Φd2 |
| 6t | 130 | 55 | 27.5 | 110 | 75 | 50 | 22.4 | 16.2 |
| 12t | 130 | 55 | 27.5 | 110 | 75 | 60 | 22.4 | 16.2 |
| 20t | 150 | 70 | 35 | 125 | 89 | 65 | 38.1 | 24.5 |
| 30t | 200 | 90 | 45 | 176 | 125 | 70 | 50.15 | 30.15 |
LC201 S Load Cell Technical Parameter:
| Rated Load: | 6/12/20/30t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error (30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
