RTN Torsional Load Cell
LC504BM2
LC504BM2 RTN Torsional Load Cell / load cell ring RTN – High-precision sensor designed to measure torque and rotational forces in real-time. Ideal for industrial automation, robotics, and torque testing applications. High-Precision RTN torsional load cell / load cell ring RTN features robust construction, high accuracy (±0.1%), and wide measurement ranges. RTN torsional load cell / load cell ring RTN compact design with easy integration via analog or digital outputs. IP-rated for harsh environments. Reliable performance for quality control, R&D, and production monitoring.
Quantity:
LC504BM2 RTN Torsional Load Cell / load cell ring RTN – High-precision sensor designed to measure torque and rotational forces in real-time. Ideal for industrial automation, robotics, and torque testing applications. High-Precision RTN torsional load cell / load cell ring RTN features robust construction, high accuracy (±0.1%), and wide measurement ranges. RTN torsional load cell / load cell ring RTN compact design with easy integration via analog or digital outputs. IP-rated for harsh environments. Reliable performance for quality control, R&D, and production monitoring. ( RTN ring torsion load cells, load cell ring RTN, RTN torsional load cell )
LC504BM2 RTN Torsional Load Cell Characteristics:
✅ LC504BM2 RTN Torsional Load Cell are available for manifold accurate measurement in the capacities 2.2t to 470t.
✅ Alloy steel or Stainless steel, completely welded,oil-proof,waterproof and anti-corrosive gas and medium, suitable for all kinds of environments.
✅ Spoke type,suitable for electronic truck scales,hopper scales, automotive testing equipments other electronic weighing or force measuring fields.

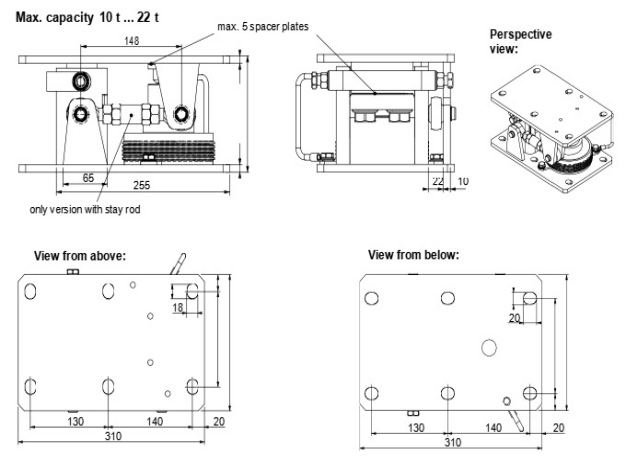

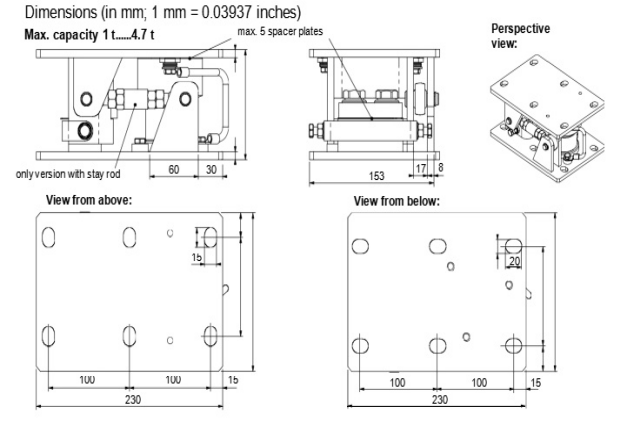

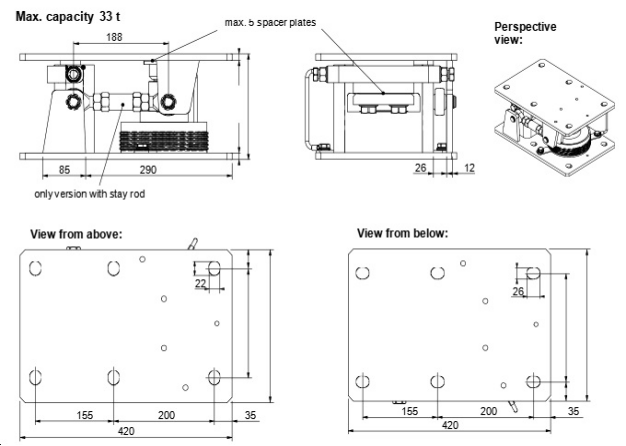

LC504BM2 RTN Torsional Load Cell Dimension:mm
LC504BM2 RTN Torsional Load Cell Technical Parameter:
| Rated Load: | 1/2.2/4.7/10/15/22/33/47/68/100/150/220/330/470t | ||
| Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A:Alloy / Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=L:13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
