Ring Load Sensor
LC6004
Ring Load Sensor / proving ring load cell 300kg – High-precision force measurement sensor with a central hole for easy installation. Ring Load Sensor / proving ring load cell 300kg Ideal for compression and tension applications in industrial scales, machinery, and structural testing. Ring Load Sensor / proving ring load cell 300kg features robust construction, high accuracy, and overload protection. Available in various capacities. Waterproof and durable for harsh environments. Contact us for custom solutions!
Quantity:
Ring Load Sensor / proving ring load cell 300kg – High-precision force measurement sensor with a central hole for easy installation. Ring Load Sensor / proving ring load cell 300kg Ideal for compression and tension applications in industrial scales, machinery, and structural testing. Ring Load Sensor / proving ring load cell 300kg features robust construction, high accuracy, and overload protection. Available in various capacities. Waterproof and durable for harsh environments. Contact us for custom solutions! ( proving ring load cell, load cell 300kg, ring load sensor )
LC6004 Ring Load Sensor Features:
✅ Thru hole structure;
✅ Stainless steel, low deflection;
✅ Metal foil strain gauge technology;
✅ Compression only;
✅ Press-in force measurement;
✅ Propeller shafts and the measurement of bolt forces;
✅ Post or leg mount;
✅ Industrial auto machine and system, such as testing machine, rolling mill system etc;
✅ Clamping force, press-in force measurement;
✅ Overload detecting;
✅ Axial force measurement for shaft pins, axle pins.;

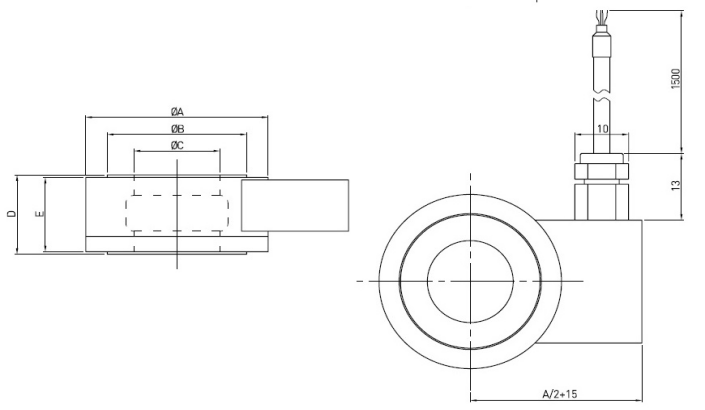

LC6004 Ring Load Sensor Dimension:
| Capacity | A | B | C | D | E | Material | Weight |
| (t) | (mm) | (kg) | |||||
| 0.3/0.5/1/2t | 34 | 24 | 16 | 15 | 14 | Alloy/ Stainless steel | 0.1kg |
| 5/10/15/20t | 69 | 54 | 32 | 50 | 49 | 1.1kg | |
| 10/20/30/45t | 95 | 78 | 50 | 50 | 49 | 1.9kg | |
LC6004 Ring Load Sensor Technicla Parameter:
| Capacity: | 0.3/0.5/1/2/5/10/15/20/10/20/30/45t | ||
| Rated Output: | 2.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep After 30 Minutes: | ±0.05% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.05% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Repeatability: | ±0.05% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. Effect On Output: | ≤0.05% of applied output/ºC | Rated Excitation: | 5V DC/AC |
| Temp. Effect On Zero: | ≤0.05% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
