Web Tension Load Cell
RPL
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: RPL
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~10t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Brand Name: Saintbond
Product Orgin: China
Item No.: RPL
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~10t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
web tension load cell, 2000kg load cell, load cell company web tension load cell, 2000kg load cell, load cell company web tension load cell, 2000kg load cell, load cell company web tension load cell, 2000kg load cell, load cell company
Ningbo Saintbond is web tension load cell company: Precisely Measure Tension. Ensure Safety and Control.
The web tension load cell is a high-performance sensor engineered specifically for measuring tensile force in ropes, wires, cables, and synthetic lines. Designed for reliability and accuracy in the most demanding environments, it is the ideal solution for applications where monitoring and controlling tension is critical for safety, efficiency, and process optimization.
How web tension load cell Works?
The web tension load cell operates on a straightforward principle. The rope is threaded over the integrated sheave. As tension is applied to the rope, it creates a downward force on the sheave. This force is precisely measured by the internal strain gauges and converted into a proportional electrical signal. This signal is then sent to a readout display, PLC, or data acquisition system for monitoring, recording, or control purposes.
The web tension load cell operates on a straightforward principle. The rope is threaded over the integrated sheave. As tension is applied to the rope, it creates a downward force on the sheave. This force is precisely measured by the internal strain gauges and converted into a proportional electrical signal. This signal is then sent to a readout display, PLC, or data acquisition system for monitoring, recording, or control purposes.

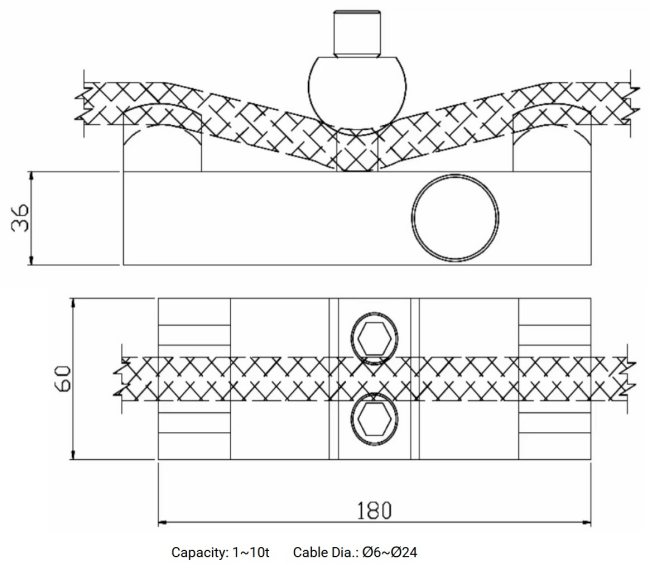

Web Tension Load Cell Dimension:mm
Web Tension Load Cell Techncial Parameter:
| Wire Rope Size: | 1/2/3/5/10t | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temperature Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Web Tension Load Cell Typical Applications:
Our web tension load cells are versatile and used across a wide range of industries:
Marine & Offshore: Mooring line tension, tow force monitoring, winch control, crane overload protection.
Cranes & Hoists: Load monitoring, anti-sway systems, and safety overload prevention.
Aerial Work Platforms: Load monitoring for personnel lifts and suspended platforms.
Theatre & Stage Rigging: Precise tension control for flying scenery, lighting, and sound equipment.
Fitness & Sports Equipment: Force measurement in high-performance training machines.
Industrial Automation: Web tension control for wire, cable, and textile manufacturing.
Research & Development: Prototype testing and material strength analysis.
Our web tension load cells are versatile and used across a wide range of industries:
Marine & Offshore: Mooring line tension, tow force monitoring, winch control, crane overload protection.
Cranes & Hoists: Load monitoring, anti-sway systems, and safety overload prevention.
Aerial Work Platforms: Load monitoring for personnel lifts and suspended platforms.
Theatre & Stage Rigging: Precise tension control for flying scenery, lighting, and sound equipment.
Fitness & Sports Equipment: Force measurement in high-performance training machines.
Industrial Automation: Web tension control for wire, cable, and textile manufacturing.
Research & Development: Prototype testing and material strength analysis.
Why Choose Ningbo Saintbond web tension load cell for Rope?
Robust & Durable: Built with high-strength materials for reliable performance in tough environments.
Accurate & Stable: Provides precise tension measurements for safety and control.
Customizable: Available in various ranges, sizes, and outputs to fit your specific needs.
Proven in Use: Trusted for marine, crane, rigging, and industrial automation applications.
Expert Support: Offers technical guidance and reliable service from a dedicated team.
Robust & Durable: Built with high-strength materials for reliable performance in tough environments.
Accurate & Stable: Provides precise tension measurements for safety and control.
Customizable: Available in various ranges, sizes, and outputs to fit your specific needs.
Proven in Use: Trusted for marine, crane, rigging, and industrial automation applications.
Expert Support: Offers technical guidance and reliable service from a dedicated team.

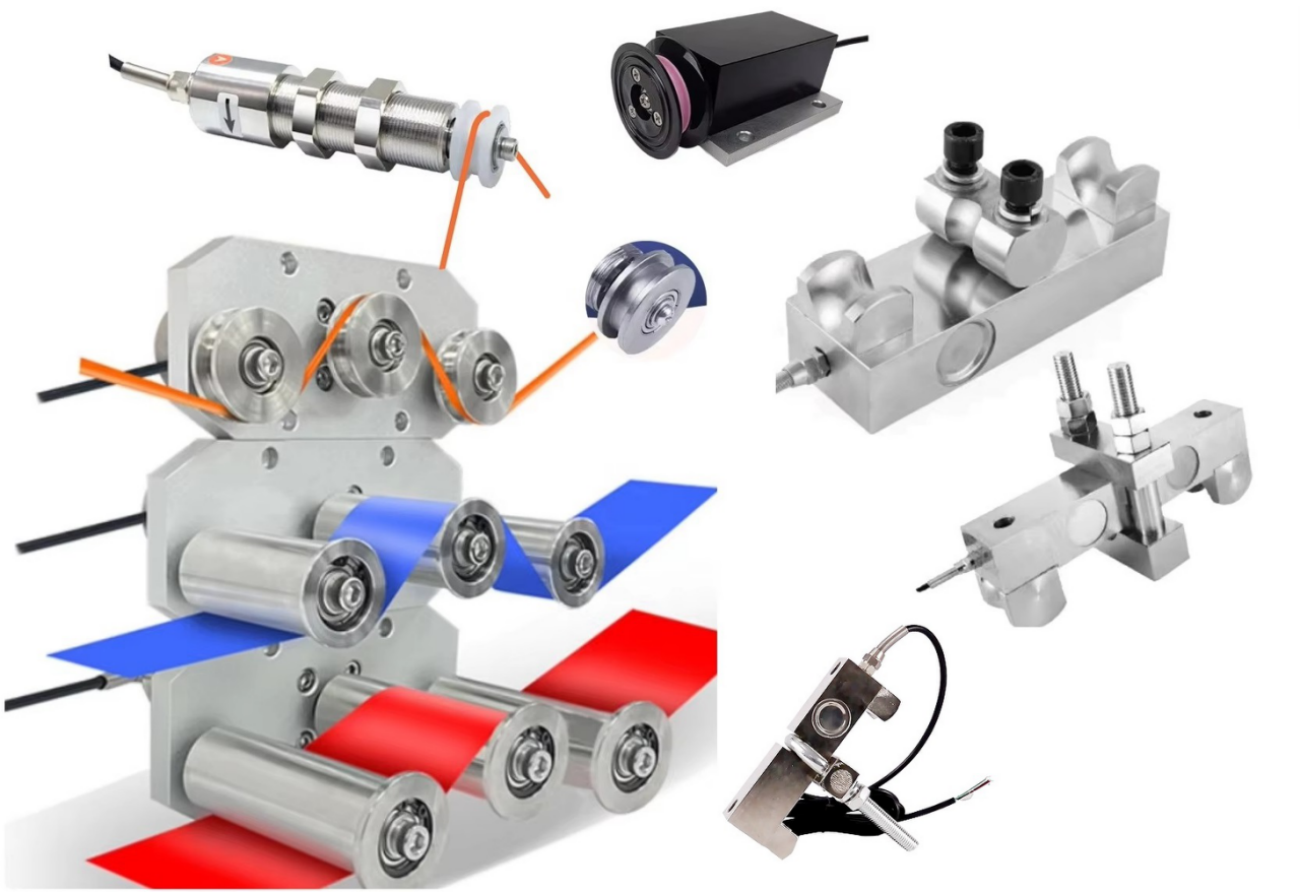

Multiple Models Available:
