Tensile Load Cells
LC205-1
An inline tension load cell / inline tension load cell is a specialized force sensor designed with threaded ends for direct integration into mechanical systems. It primarily measures tensile forces in linear applications where the load cell becomes an integral part of the assembly.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC205
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:0.5~20t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC205
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:0.5~20t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
20-35Day
Quantity:
in line tension load cell, inline tension load cell, tensile load cells in line tension load cell, inline tension load cell, tensile load cells in line tension load cell, inline tension load cell, tensile load cells in line tension load cell, inline tension load cell, tensile load cells in line tension load cell, inline tension load cell, tensile load cells in line tension load cell, inline tension load cell, tensile load cells
An inline tension load cell / inline tension load cell is a specialized force sensor designed with threaded ends for direct integration into mechanical systems. It primarily measures tensile forces in linear applications where the load cell becomes an integral part of the assembly.

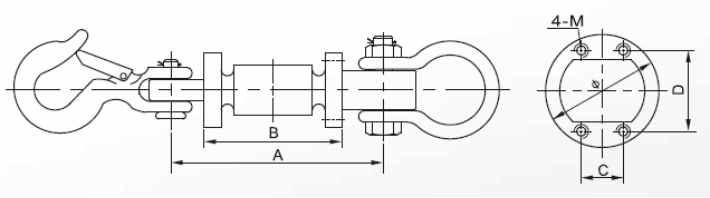

LC205 Tensile Load Cells Dimension:mm
| Capacity | A | B | C | D | φ | M |
| ( t ） | ( mm ) | |||||
| 1t | 130 | 74 | 16 | 37 | 48 | M6 |
| 2t | 150 | 82 | 22 | 47 | 62 | M6 |
| 3t | 150 | 82 | 22 | 47 | 62 | M6 |
| 5t | 188 | 103 | 28 | 56 | 72 | M6 |
| 10t | 230 | 120 | 28 | 66 | 82 | M6 |
LC205 Tensile Load Cells Technical Parameter:
| Rated Load: | 1/2/3/5/10t | Operating Temp. Range | -30~+70℃ |
| Sensitivity: | (1.5±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | A:Alloy Steel, SS:Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:1m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
LC205 Tensile Load Cells Applications:
◎Cable and wire tension monitoring
◎Conveyor system tension control
◎Industrial robot force feedback
◎Structural testing and monitoring
◎Process control in manufacturing
◎Cable and wire tension monitoring
◎Conveyor system tension control
◎Industrial robot force feedback
◎Structural testing and monitoring
◎Process control in manufacturing
LC205 Tensile Load Cells Advantages:
◎Direct force transmission path
◎Minimal maintenance requirements
◎Space-saving configuration
◎Excellent dynamic response characteristics
◎Direct force transmission path
◎Minimal maintenance requirements
◎Space-saving configuration
◎Excellent dynamic response characteristics
This robust tension measurement solution is ideal for applications requiring reliable force monitoring in constrained spaces. Custom configurations available upon request.
