Shackle Pin Load Cell
LC7501D
Saintbond shackle pin load cell (WLS) provides the perfect solution to limited headroom or super heavy lift projects. Available from stock in capacities from 3.25t to 1200t. Customization is available for different ranges,
Quantity:
Saintbond shackle pin load cell (WLS) provides the perfect solution to limited headroom or super heavy lift projects. Available from stock in capacities from 3.25t to 1200t. Customization is available for different ranges, load cell 2 ton ( shackle pin load cell, load cell 2 ton, Saintbond shackle pin load cell )
Two versions of the WLS are available:
✅ Long range wireless version providing industry leading wireless range of 100m ~800m to wireless handheld weighing indicator or software options.
✅ Bluetooth output and can be connected to any smart phone running our free HHP app on iOS or Android.
Each WLS is proof tested, Featuring industry leading wireless technology the WLS is supplied can be easily configured to run at industry leading speeds of up to if required for dynamic load measurement projects.
Utilising easily sourced AA alkaline batteries the WLS features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.
LC7501D Shackle Pin Load Cell Features:
✅ Shackle design means no loss of headroom;
✅ On board load readout in a variety of display units are available;
✅ The Shackle Pin Load Cell shall have 4:1,5:1,6:1,8:1 various safety factors are available;
LC7501D Shackle Pin Load Cell Dimension:in mm

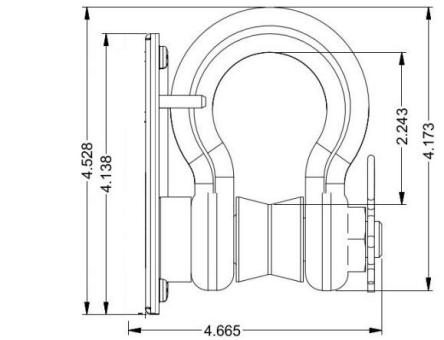

Shackle Pin Load Cell,3.25 Metric Ton:

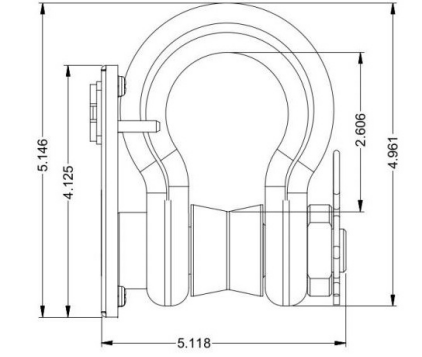

Shackle Pin Load Cell, 4.75 Metric Ton:
LC7501D Shackle Pin Load Cell Technical Parameter:
| Rate Load: | 0.5t-1250t | Overload Indication: | 100% F.S. + 9e |
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Stable Time: | ≤10seconds; |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Telemetry Frequency: | RS485 |
Shackle Pin Load Cell Note:
✅ All the above dimensions are for reference only. The real dimensions are subject to the actual products!
✅ All capacity dimension subject to the actual delivery size;
