S Shaped Load Cell
LC2010
The s shaped load cell, also known as an s type load cell working or s beam load cell mounting, is a highly versatile and widely used force transducer. Its name is derived from its distinctive "S" shaped profile. This design is engineered to provide accurate and reliable measurement of both tension (pulling) and compression (pushing) forces.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2010
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0~5kg,10/20/30/50/75/100kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2010
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0~5kg,10/20/30/50/75/100kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 sheets
Supply Ability
20000sheets / Month
Country of Origin
China
Stock Time
30Day
Quantity:
s beam load cell mounting, s type load cell working, s shaped load cell s beam load cell mounting, s type load cell working, s shaped load cell s beam load cell mounting, s type load cell working, s shaped load cell s beam load cell mounting, s type load cell working, s shaped load cell s beam load cell mounting, s type load cell working, s shaped load cell s beam load cell mounting, s type load cell working, s shaped load cell
The s shaped load cell, also known as an s type load cell working or s beam load cell mounting, is a highly versatile and widely used force transducer. Its name is derived from its distinctive"S"shaped profile. This design is engineered to provide accurate and reliable measurement of both tension (pulling) and compression (pushing) forces.
Renowned for its robustness and precision, the s beam load cell mounting is a preferred solution for a vast array of industrial applications, including suspended weighing, material testing, and process control.

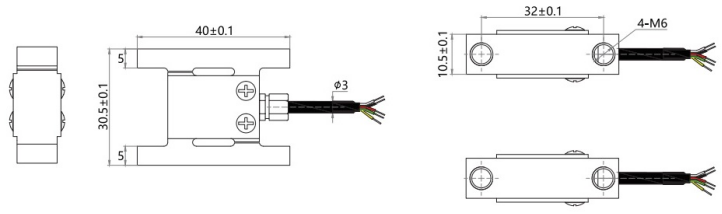

LC2010 S Shaped Load Cell Dimension:mm
LC2010 S Shaped Load Cell Technical Parameter:
| Capacity | 0~5kg,10/20/30/50/75/100kg | ||
| Rated output | 2.0±10%mV/V | Output Impedance | 350±5Ω |
| Zero Output | ±2%F.S. | Input Impedance | 380±30Ω |
| Non-Linear | 0.05%F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.05%F.S. | Operating voltage | 5-15v |
| Repeatability | 0.05%F.S. | Excitation max | 10V |
| Creep(30min) | 0.05%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.05% F.S./10ºC | Ultimate overload | 200% |
| Temp.effect on zero | 0.05% F.S./10ºC | Material | Stainless steel |
| Operating temperature range | -20-80℃ | Weight | 650g |
How LC2010 S Shaped Load Cell Works?
An s beam load cell mounting operates on the strain gauge principle. When a force is applied along its central axis, the elastic element (the beam of the"S") deforms slightly. This deformation is sensed by strain gauges bonded to the beam, which change their electrical resistance proportionally. These changes are converted into a millivolt-level output signal through a Wheatstone Bridge circuit. This signal is then transmitted to an indicator or controller, which displays it as a weight or force value.
An s beam load cell mounting operates on the strain gauge principle. When a force is applied along its central axis, the elastic element (the beam of the"S") deforms slightly. This deformation is sensed by strain gauges bonded to the beam, which change their electrical resistance proportionally. These changes are converted into a millivolt-level output signal through a Wheatstone Bridge circuit. This signal is then transmitted to an indicator or controller, which displays it as a weight or force value.
LC2010 S Shaped Load Cell Common Applications:
Industrial Weighing: Tank & silo weighing, hopper scales, overhead monorail scales, conveyor belt scales.
Force Monitoring: Test and measurement machines, structural load monitoring.
Process Control: Tension control in web handling (e.g., paper, film, textiles), cable & rope tension measurement.
Industrial Automation: Robotic arm force control, press force monitoring.
Marine & Offshore: Mooring line tension, anchor line monitoring.
Industrial Weighing: Tank & silo weighing, hopper scales, overhead monorail scales, conveyor belt scales.
Force Monitoring: Test and measurement machines, structural load monitoring.
Process Control: Tension control in web handling (e.g., paper, film, textiles), cable & rope tension measurement.
Industrial Automation: Robotic arm force control, press force monitoring.
Marine & Offshore: Mooring line tension, anchor line monitoring.
LC2010 S Shaped Load Cell Selection Guide:
When selecting an s beam load cell mounting, consider the following:
Capacity:Choose a capacity slightly higher than your maximum expected load.
Accuracy:Determine the required class for your application (e.g., C3 for legal-for-trade).
Environment: Select the material and IP rating based on exposure to moisture, dust, or corrosion.
Mounting:Choose appropriate accessories like shackles or clevis pins for your installation.
Certifications:Check for required approvals like CE, or ATEX.
When selecting an s beam load cell mounting, consider the following:
Capacity:Choose a capacity slightly higher than your maximum expected load.
Accuracy:Determine the required class for your application (e.g., C3 for legal-for-trade).
Environment: Select the material and IP rating based on exposure to moisture, dust, or corrosion.
Mounting:Choose appropriate accessories like shackles or clevis pins for your installation.
Certifications:Check for required approvals like CE, or ATEX.
The s beam load cell mounting offers an optimal combination of precision, durability, and versatility for demanding force measurement applications. Its reliable performance in both tension and compression makes it an indispensable component in modern industrial systems.
