S Load Cell
LC2009
S Load Cells, also known as s type load cell datasheet, are a highly versatile and widely used type of force sensor. Their name is derived from their distinctive "S" shaped profile. These load cells are engineered to measure both tension (pulling) and compression (pushing) forces with high accuracy and reliability.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2009
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~500kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2009
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~500kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 sheets
Supply Ability
20000sheets / Month
Country of Origin
China
Stock Time
30Day
Quantity:
s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell s type load cell datasheet, s load, s load cell
S Load Cells, also known as s type load cell datasheet, are a highly versatile and widely used type of force sensor. Their name is derived from their distinctive"S"shaped profile. These load cells are engineered to measure both tension (pulling) and compression (pushing) forces with high accuracy and reliability.
S Load Cell is ideal for a broad range of industrial applications, S Load Cells are the preferred solution for suspended weighing, mechanical testing, and process control where robust and precise force measurement is critical.

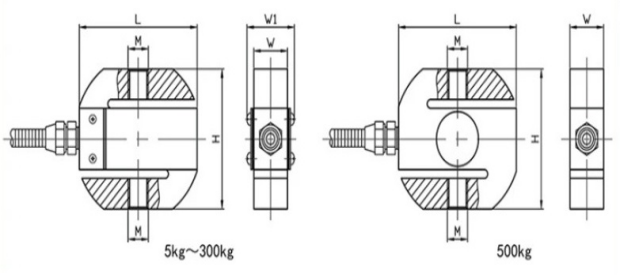

LC2009 S Load Cell Dimension:mm
| Capacity | L | W | W1 | H | M |
| (kg) | (mm) | ||||
| 5kg~30kg | 62 | 12 | 18 | 58 | M8X1.25 |
| 50kg~300kg | 70 | 20 | 26 | 64 | M12X1.75 |
| 500kg | 70 | 20 | ~ | 64 | M12X1.75 |
LC2009 S Load Cell Technical Parameter:
| Capacity | 5~500kg | ||
| Rated output | 2.0±10%mV/V | Output Impedance | 350±5Ω |
| Zero Output | ±1%F.S. | Input Impedance | 380±30Ω |
| Non-Linear | 0.03%F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.03%F.S. | Operating voltage | 5-15v |
| Repeatability | 0.03%F.S. | Excitation max | 10V |
| Creep(30min) | 0.03%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.03% F.S./10ºC | Ultimate overload | 2 |
| Temp.effect on zero | 0.05% F.S./10ºC | Material | Alloy /Stainless steel |
| Operating temperature range | -20-80℃ | Weight | 650g |
LC2009 S Load Cell Applications:
S Load Cells are used across countless industries. Key applications include:

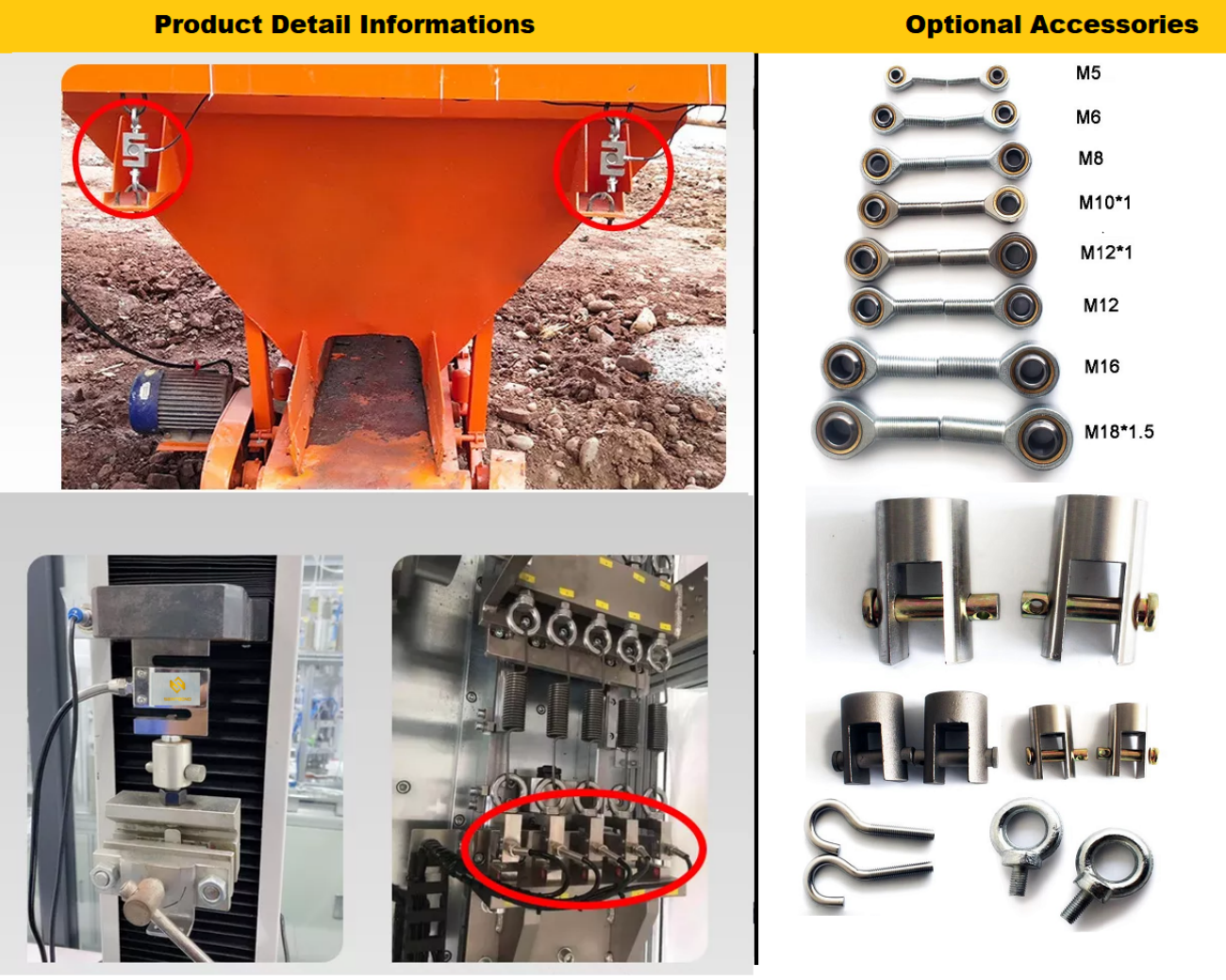

Industrial Weighing: Tank and silo weighing, hopper scales, overhead monorail scales, conveyor belt scales.
Force Monitoring: Test and measurement machines, material testing frames, structural monitoring.
Process Control: Tension control in web handling (e.g., paper, film, textiles), cable and rope tension measurement.
Aerospace:Component testing, thrust measurement.
Marine & Offshore: Mooring line tension, anchor line monitoring.
S Load Cells are used across countless industries. Key applications include:
Industrial Weighing: Tank and silo weighing, hopper scales, overhead monorail scales, conveyor belt scales.
Force Monitoring: Test and measurement machines, material testing frames, structural monitoring.
Process Control: Tension control in web handling (e.g., paper, film, textiles), cable and rope tension measurement.
Aerospace:Component testing, thrust measurement.
Marine & Offshore: Mooring line tension, anchor line monitoring.
S type load cell datasheetoffer an optimal blend of precision, durability, and versatility for demanding force measurement applications. Their ability to perform reliably in both tension and compression makes them an indispensable component in modern industrial systems.
