Rope Tension Load Cell
LC3004
Three Pulley Cable Tension Sensor / Three-pulley tension sensor accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Three Pulley Cable Tension Sensor / Three-pulley tension sensor provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments.
Quantity:
Three Pulley Cable Tension Sensor / Three-pulley tension sensor accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Three Pulley Cable Tension Sensor / Three-pulley tension sensor provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments.
LC3004 Rope Tension Load Cell Products specification:
Three Pulley Cable Tension Sensor / Three-pulley tension sensor Suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, adhesive tapes, steel belts. It is widely used in the fields of electronics, chemical industry, textile, paper making, machinery, etc. It has high measurement accuracy, reliability and stability in the field of tension measurement. Three Pulley Cable Tension Sensor / Three-pulley tension sensor has a built-in overload protection mechanism, and each sensor is rigorously tested before leaving the factory, thus ensuring the measurement accuracy, stability and reliability of the product. It is the choice for high-performance tension control applications in continuous material processing and production; ( rope tension load cell, Three Pulley Cable Tension Sensor, Three-pulley tension sensor )
Three Pulley Cable Tension Sensor / Three-pulley tension sensor Suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, adhesive tapes, steel belts. It is widely used in the fields of electronics, chemical industry, textile, paper making, machinery, etc. It has high measurement accuracy, reliability and stability in the field of tension measurement. Three Pulley Cable Tension Sensor / Three-pulley tension sensor has a built-in overload protection mechanism, and each sensor is rigorously tested before leaving the factory, thus ensuring the measurement accuracy, stability and reliability of the product. It is the choice for high-performance tension control applications in continuous material processing and production; ( rope tension load cell, Three Pulley Cable Tension Sensor, Three-pulley tension sensor )

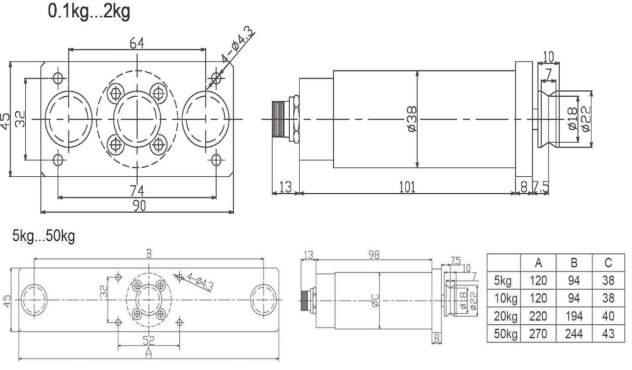

LC3004 Rope Tension Load Cell Dimension:mm
LC3004 Rope Tension Load Cell Technical Parameter:
| Wire Rope Size: | 5/10/20/50kg | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
