Ring Torsion Load Cell
LC6005
Ring Torsion Load Cell / through hole ring load cell – High-precision force measurement sensor with a central hole for easy installation. Ring Torsion Load Cell / through hole ring load cell Ideal for compression and tension applications in industrial scales, machinery, and structural testing. Ring Torsion Load Cell / 10000 lb load cell features robust construction, high accuracy, and overload protection. Available in various capacities. Waterproof and durable for harsh environments. Contact us for custom solutions!
Quantity:
Ring Torsion Load Cell / through hole ring load cell – High-precision force measurement sensor with a central hole for easy installation. Ring Torsion Load Cell / through hole ring load cell Ideal for compression and tension applications in industrial scales, machinery, and structural testing. Ring Torsion Load Cell / 10000 lb load cell features robust construction, high accuracy, and overload protection. Available in various capacities. Waterproof and durable for harsh environments. Contact us for custom solutions! ( ring torsion load cell, 10000 lb load cell, through hole ring load cell )
LC6005 Ring Torsion Load Cell Features:
✅ Thru hole structure;
✅ Stainless steel, low deflection;
✅ Metal foil strain gauge technology;
✅ Compression only;
✅ Press-in force measurement;
✅ Propeller shafts and the measurement of bolt forces;
✅ Post or leg mount;
✅ Industrial auto machine and system, such as testing machine, rolling mill system etc;
✅ Clamping force, press-in force measurement;
✅ Overload detecting;
✅ Axial force measurement for shaft pins, axle pins.;

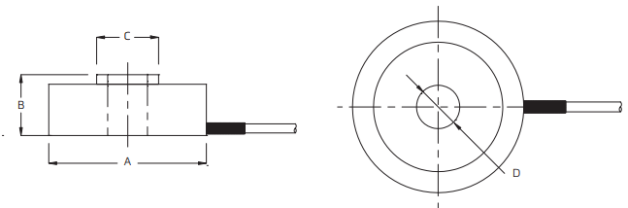

LC6005 Ring Torsion Load Cell Dimension:
| Dimension/ Capacity | 100~2000lb | 3000~10000lb |
| Outer Dia.(mm)-A | 31.2 | 50.8 |
| Height(mm)-B | 10.16 | 16 |
| Spherical Load button Dia.(mm)-C | 11.9 | 22 |
| Hole Dia.(mm)-D | 4.9 | 13 |
LC6005 Ring Torsion Load Cell Technicla Parameter:
| Rated Load: | 100/250/500/1,000/2,000/3,000/5,000/10,000Lb | ||
| Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A:Alloy / Stainless Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=L:13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
