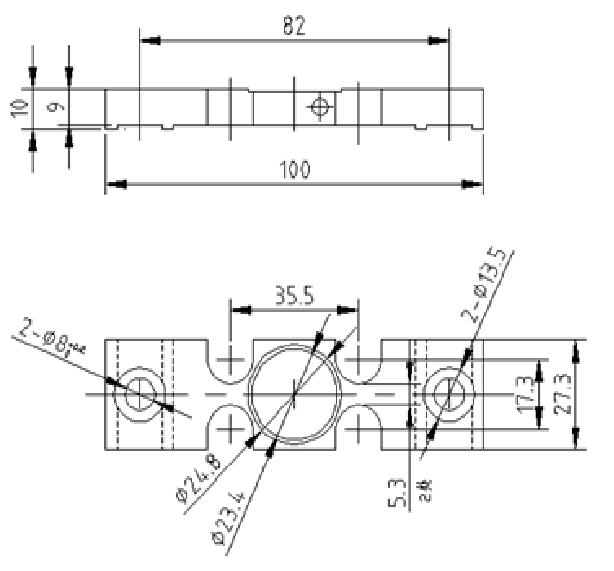

Miniature Tension Sensor

The working principle of the Plate And Ring Tension Load Cell / miniature load cell tension: the elastomer (elastic element, sensitive beam) deforms elastically under the action of external force, so that the resistance strain gauge (conversion element) pasted on its surface is also deformed, and after the deformation of the resistance strain gauge, its resistance value will change (increase or decrease), and then the corresponding measurement circuit converts this resistance change into an electrical signal (voltage or current), thus completing the process of converting the external force into an electrical signal. The process of converting the external force into an electrical signal is completed. Plate And Ring Tension Load Cell / miniature load cell tension is widely used in various electronic vehicle scales, rail scales, platform scales, hopper scales and other occasions of weighing and force measurement.
