Miniature Load Cell Tension Compression
LC2996
The LC2996 miniature tension and compression load cell / miniature tension compression load cell is a high-performance device built for reliable force measurement in demanding industrial and offshore environments. Constructed from high-grade stainless steel with IP68 waterproof protection, it is hermetically sealed to resist water, dust, and harsh weather, ensuring long-term durability and accurate results even in outdoor or subsea use. Designed to measure both tension and compression
Quantity:
The LC2996 miniature tension and compression load cell / miniature tension compression load cell is a high-performance device built for reliable force measurement in demanding industrial and offshore environments. Constructed from high-grade stainless steel with IP68 waterproof protection, it is hermetically sealed to resist water, dust, and harsh weather, ensuring long-term durability and accurate results even in outdoor or subsea use. Designed to measure both tension and compression, the The LC2996 miniature tension and compression load cell / miniature tension compression load cell comes in rated capacities from 30kN up to 1000kN. Its compact yet robust link design integrates easily with shackles, lifting systems, or structural monitoring setups, offering versatility across industries. ( miniature load cell tension compression, miniature tension and compression load cell, miniature tension compression load cell )
Typical applications include mooring line feedback to stabilize vessels, offshore rig lifting and monitoring, bridge cable tension measurement for structural safety, and port equipment checks. It is also widely adopted in underwater mechanics experiments and engineering analysis where precision is critical.

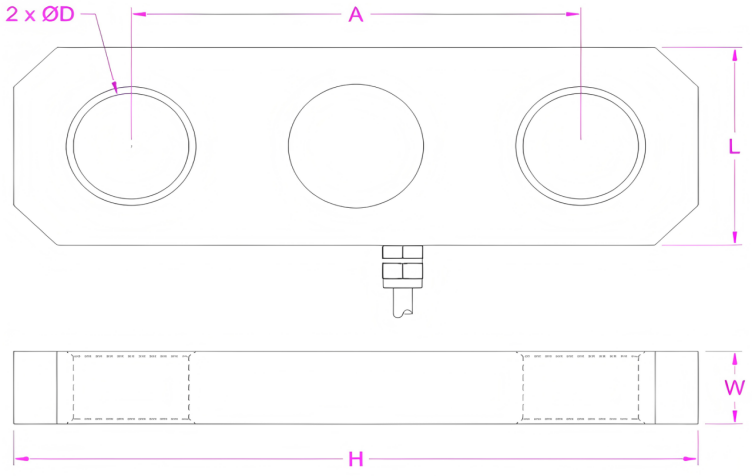

LC2996 Miniature Load Cell Tension Compression Dimension:mm
| Capacity | H | W | L | A | D |
| 30kN | 190 | 20 | 56 | 130 | 28 |
| 50kN | 180 | 20 | 60 | 130 | 32 |
| 100kN | 290 | 35 | 90 | 180 | 45 |
| 200kN | 320 | 45 | 110 | 200 | 52 |
| 300kN | 350 | 50 | 126 | 220 | 60 |
| 500kN | 430 | 60 | 145 | 270 | 72 |
| 1000kN | 530 | 80 | 185 | 310 | 84 |

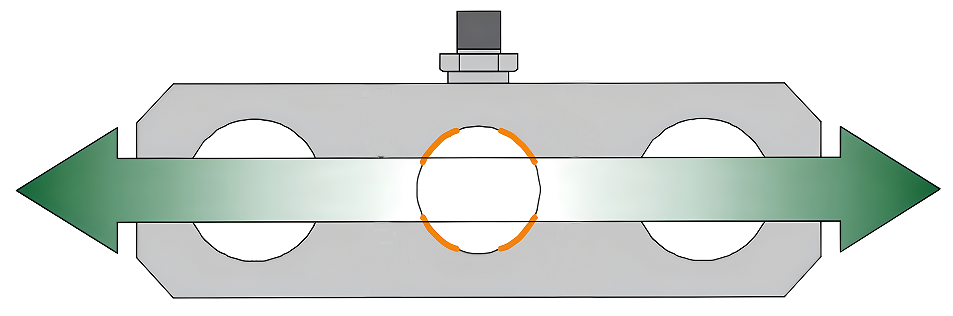

Load Direction:
LC2996 Miniature Load Cell Tension Compression Tehcnical Parameter:
| Capacity | 30/50/100 /200/300/500/1000 kN | ||
| Rated Output | 1.0~1.5 mV/V | Compensated Temp. | 0...+40°C |
| Excitation | 3~15V | Operating Temp. | .-20...+60°C |
| Zero Balance | ±0.05mV/V | Temp. Shift Zero | ±0.01% of R.O./°C |
| Nonlinearity | ±0.3% of R.O. | Temp. Shift Span | ±0.01% of R.O./°C |
| Hysteresis | ±0.3% of R.O. | Input Resistance | 350/700±100Ω |
| Nonrepeatability | ±0.1% of R.O. | Output Resistance | 350/700±50Ω |
| Creep(5min) | ±0.1% of R.O. | Insulation Resistance | >2000MΩ(50V) |
| Safe Overload | 150% of F.S. | Ingress Protection | IP67/68 |
| Ultimate Overload | 200% of F.S. | Material of Element | Alloy / Stainless Steel |
| R.O.=Rated Output / F.S.=Full Scale | |||
