Miniature Button Load Cell
LC5024
Ningbo Saintbond Miniature Button Load Cell Manufacturers in China
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC5024
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10~1000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC5024
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10~1000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15 ~ 35Day
Quantity:
miniature button load cell, load cell manufacturers in china, button load cell miniature button load cell, load cell manufacturers in china, button load cell miniature button load cell, load cell manufacturers in china, button load cell
Ningbo Saintbond Miniature Button Load Cell Manufacturers in China
Ningbo Saintbond is a leading manufacturer of high-precision load cell manufacturers in china solutions, specializing in the design and production of miniature button load cells. As one of the trusted load cell manufacturers in China, we deliver compact, durable, and highly accurate sensors for a wide range of industrial and commercial applications.

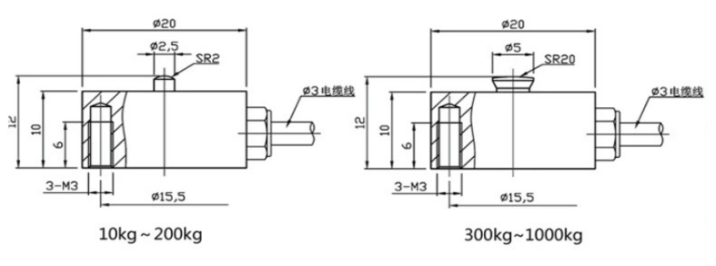

LC5024 Miniature Button Load Cell Dimension: mm
LC5024 Miniature Button Load Cell Technical Parameter:
| Capacity: | 10/20/30/50/100/1000kg | ||
| Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep After 30 Minutes: | ±0.5% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.5% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Repeatability: | ±0.5% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. Effect On Output: | ≤0.05% of applied output/ºC | Rated Excitation: | 5V DC/AC |
| Temp. Effect On Zero: | ≤0.05% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
Our miniature button load cell series is engineered to provide reliable force measurement in space-constrained environments. These miniature button load cells are characterized by their small size, robust construction, and excellent resistance to external interference, making them ideal for applications such as:
þ Automation and robotics
þ Medical equipment
þ Test and measurement systems
þ Packaging machinery
þ Aerospace and automotive testing
þ Automation and robotics
þ Medical equipment
þ Test and measurement systems
þ Packaging machinery
þ Aerospace and automotive testing
Key Features of Saintbond Miniature Button Load Cells:
Compact Design: Ultra-small footprint for easy integration into limited spaces.
High Accuracy: Precision-grade measurement with excellent linearity and repeatability.
Robust Construction: Made from high-strength stainless steel, suitable for harsh environments.
Multiple Capacities: Available in various load ranges to meet diverse force measurement needs.
Easy Installation: Simple bolt-on or embedded mounting options.
Compact Design: Ultra-small footprint for easy integration into limited spaces.
High Accuracy: Precision-grade measurement with excellent linearity and repeatability.
Robust Construction: Made from high-strength stainless steel, suitable for harsh environments.
Multiple Capacities: Available in various load ranges to meet diverse force measurement needs.
Easy Installation: Simple bolt-on or embedded mounting options.
As a professional load cell manufacturer in China, Ningbo Saintbond combines advanced manufacturing technology with strict quality control to ensure every miniature button load cell meets international standards. We also offer customized solutions to address specific customer requirements.
For more information about our miniature button load cell products and other sensor solutions, please contact us or visit our website.
Ningbo Saintbond – Your Trusted Partner for Precision Miniature Button Load Cell in China.
