Miniature Load Cell Sensor
LC5006
Miniature Load Cell Sensor compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Flat load cell Ideal for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc.Button load cell arduino for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs.
Quantity:
Miniature Load Cell Sensor compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Flat load cell Ideal for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc.Button load cell arduino for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs. (flat load cell, button load cell arduino, miniature load cell sensor )
Miniature Load Cell Sensor Features:
✅ Miniature Compression load cells
✅ Capacity:5kg,...,20kg
✅ Accuracy:1%R.O.
✅ Super micro structure
✅ Aluminum construction with surface anodized/stainless steel construction
✅ Environment protection class:IP65
Miniature Load Cell Sensor Applications:
✅ Flat mounting weighing systems,
✅ Force measuring in a narrow space.
✅ Load Cell Miniature Dimension:

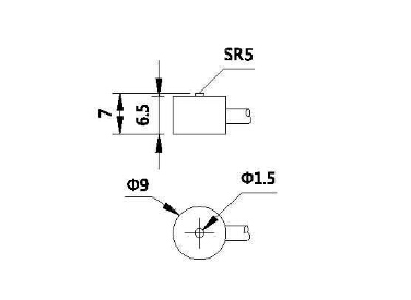

Miniature Load Cell Sensor Dimension:
Miniature Load Cell Sensor Technical Parameter:
| Model | LC5006 | Excitation,Recommended | ≤6VDC |
| Rated Capacity | 5/10/20 kg | Operating Temp.Range | -10－+40℃ |
| Accuracy Class | X | Safe Overload | 120%R.C. |
| Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
| Zero Balance | ±0.1 mV/V | Cable,Length | ø2.2mm×2m |
| Input Resistance | 350±10Ω | Hysteresis Error | ±1%R.O. |
| Output Resistance | 350±10Ω | Creep in 2 Min. | ±1%R.O. |
| Linearlty Error | ±1%R.O. | Temp.Effect on Output | ±1%R.O./10℃ |
| Repeatability Error | ±1%R.O. | Temp.Effect on Zero | ±1%R.O./10℃ |
