Load Cell type S
LC2012
The load cell type s , also known as an load cell type s yzc 516c load cell due to its distinctive "S" shape, is a highly versatile and robust force transducer. It is engineered to deliver precise and reliable measurement of both tension (pulling) and compression (pushing) forces.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2012
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0.1/0.2/0.3/0.5/1/2t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization

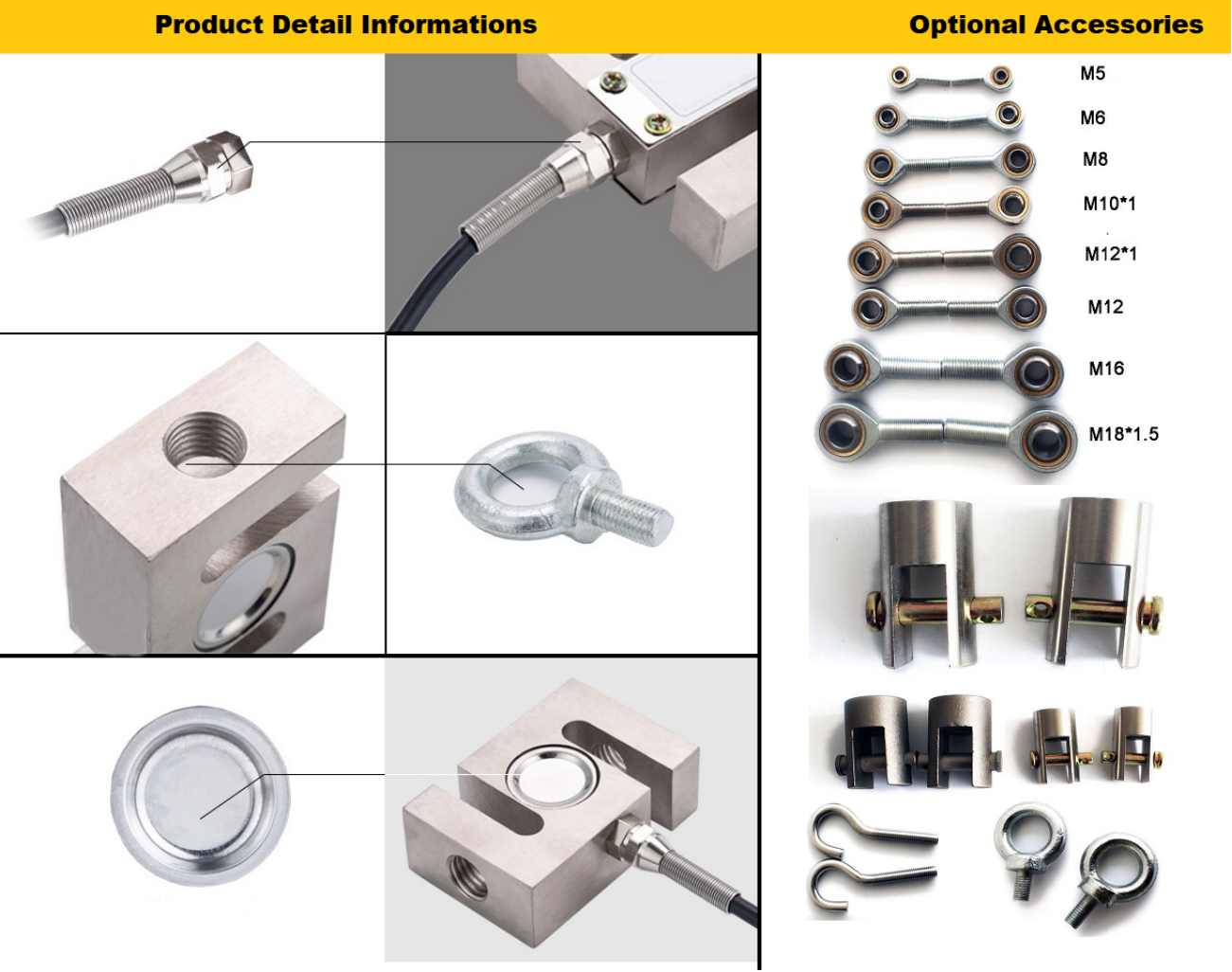

✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2012
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0.1/0.2/0.3/0.5/1/2t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s yzc 516c load cell, yzc 516c, load cell type s
The load cell type s , also known as an load cell type s yzc 516c load cell due to its distinctive"S"shape, is a highly versatile and robust force transducer. It is engineered to deliver precise and reliable measurement of both tension (pulling) and compression (pushing) forces.
Renowned for its durability and accuracy, the load cell type s is a preferred solution for a vast array of industrial applications, from suspended weighing and hopper scales to material testing and process control.

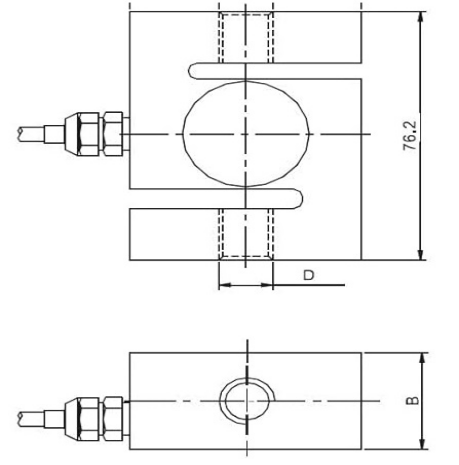

LC2012 Load Cell Type S Dimension: mm
| Capacity | B | D |
| (kg) | (mm) | |
| 100~300kg | 19.05 | M12×1.75 |
| 500kg | 25.4 | M12×1.75 |
| 1~2t | 25.4 | M16×2 |
LC2012 Load Cell Type S Technical Parameter:
| Capacity | 0.1/0.2/0.3/0.5/1/2t | Output Impedance | 350±5Ω |
| Rated output | 2.0±10%mV/V | Input Impedance | 350±20Ω |
| Zero Output | ±1%F.S. | Insulation | >5000MΩ/10VDC |
| Non-Linear | 0.02%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.02%F.S. | Excitation max | 10V |
| Repeatability | 0.02%F.S. | Operating temperature range | -20-80℃ |
| Creep(30min) | 0.02%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.0017% F.S./10ºC | Ultimate overload | 200% |
| Temp.effect on zero | 0.005% F.S./10ºC | Material | Alloy /Stainless steel |
How LC2012 Load Cell Type S Works?
The load cell type s operates on the strain gauge principle. When a force is applied along its central axis, the elastic element (the beam of the"S") deforms slightly. This deformation is sensed by strain gauges bonded to the beam, which change their electrical resistance. These changes are converted into a millivolt-level output signal via a Wheatstone Bridge circuit. This signal is then sent to an indicator or controller to be displayed as a weight or force value.
The load cell type s operates on the strain gauge principle. When a force is applied along its central axis, the elastic element (the beam of the"S") deforms slightly. This deformation is sensed by strain gauges bonded to the beam, which change their electrical resistance. These changes are converted into a millivolt-level output signal via a Wheatstone Bridge circuit. This signal is then sent to an indicator or controller to be displayed as a weight or force value.
LC2012 Load Cell Type S Common Applications:
Industrial Weighing: Tank & silo weighing, hopper scales, overhead monorail scales, conveyor belt weighers.
Force Monitoring: Material testing machines, structural load monitoring, check weighers.
Process Control: Web tension control (paper, film, textiles), cable & rope tension measurement.
Industrial Automation: Robotic arm force feedback, press force monitoring.
Marine & Offshore: Mooring line tension, anchor line monitoring.
Industrial Weighing: Tank & silo weighing, hopper scales, overhead monorail scales, conveyor belt weighers.
Force Monitoring: Material testing machines, structural load monitoring, check weighers.
Process Control: Web tension control (paper, film, textiles), cable & rope tension measurement.
Industrial Automation: Robotic arm force feedback, press force monitoring.
Marine & Offshore: Mooring line tension, anchor line monitoring.
The load cell type s yzc 516c load cell provides an optimal balance of precision, ruggedness, and versatility for demanding force measurement applications. Its reliable performance in both tension and compression makes it an indispensable component in modern industrial weighing and control systems.
