Load Cell Shackle

LC7505W

The wireless load shackle / load rated bow shackles can be used in all applications where a load measuring survey is necessary. The load pin included on the shackle provides a proportional electrical signal according to the applied load. The transducer is constructed with high resistance stainless steel and is insensitive to external mechanical, chemical or marine effects making them ideal for use in harsh environmental conditions.

Quantity:

Contact Now

add to cart

LC7505W Load Cell Shackle Description:

LC7505W Load Cell Shackle Features:

✅ The shackle S6 grade:0.5t-1250t;

✅ S6 grade is structural alloy steel;

✅ The maximum testing load of 0.5t-150t shackle is 2 times of the working load,the maximum testing load 200t of 500t shackle is 1.5 times of the working load.

✅ The maximum testing load of 800t-12500t shackle is 1.33 times of the working load, the minimum breaking load is 1.5 times of the working load;

✅ Monitors traction force and other force measurement;

✅ Available in 7 standard ranges between 0.5t-1250t;

✅ Alloy steel and Stainless steel construction;

✅ Special execution for harsh environmental conditions (IP66);

✅ High reliability for strict safety requirements;

✅ Simple installation for cost-saving solutions to measurement problems;

LC7505W Load Cell Shackle Applications:

The LC7505 wireless load shackle is designed for hoisting in several applications like cranes winches, lifting, and other marine applications. In combination with a portable GM 80 or LMU (Load Monitoring Unit), the LC7505 load rated bow shackles is the most reliable and simplest method to control your load application.Whether used in heavy lifting, mooring anchor placement or sub-sea applications, our cabled Load shackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price.

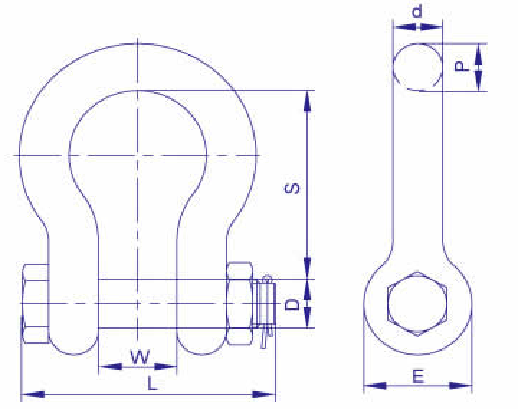

LC7505W Wireless Load Shackle Dimension:

Load	Shackle Load	W	D	d	E	P	S	L	O	Weight
(t)	(t)	(mm)								(kg)
LC7505-0.5t	0.5	12	8	6.5	15.5	6.5	29	37	20	0.05
LC7505-0.7t	0.75	13.5	10	8	19	8	31	45	21.5	0.1
LC7505-1t	1	17	12	9.5	23	9.5	36.5	54	26	0.13
LC7505-1.5t	1.5	19	14	11	27	11	43	62	29.5	0.22
LC7505-2t	2	20.5	16	13	30	13	48	71.5	33	0.31
LC7505-3t	3.25	27	20	16	38	17.5	60.5	89	43	0.67
LC7505-4t	4.75	32	22	19	46	20.5	71.5	105	51	1.14
LC7505-5t	6.5	36.5	27	22.5	53	24.5	84	121	58	1.76
LC7505-8t	8.5	43	30	25.5	60.5	27	95	136.5	68.5	2.58
LC7505-9t	9.5	46	33	29.5	68.5	32	108	149.5	74	3.96
LC7505-10t	12	51.5	36	33	76	35	119	164.5	82.5	5.06
LC7505-13t	13.5	57	39	36	84	38	133.5	179	92	7.29
LC7505-15t	17	60.5	42	39	92	41	146	194.5	98.5	8.75
LC7505-25t	25	73	52	47	106.5	57	178	234	127	14.22
LC7505-30t	35	82.5	60	53	122	61	197	262.5	146	21
LC7505-55t	55	105	72	69	144.5	79.5	267	339	184	42.12
LC7505-80t	85	127	85	76	165	92	330	394	200	74.8
LC7505-100t	120	133.5	95	92	203	104.5	371.4	444	228.5	123.6
LC7505-150t	150	140	110	104	228.5	116	368	489	254	165.9
LC7505-200t	200	184	130	115	270	115	396	580	280	237
LC7505-300t	300	200	150	130	320	130	450	644	300	363
LC7505-500t	500	240	185	165	390	165	557.5	779	360	684
LC7505-800t	800	300	240	207	493	207	660	952	440	1313
LC7505-1000t	1000	390	270	240	556	240	780.5	1136	560	2024
LC7505-1200t	1250	400	300	260	620	260	850	1225	560	2511

LC7505W Wireless Load Shackle Technical Parameter:

Rate Load:	0.5t-1250t	Overload Indication:	100% F.S. + 9e
Proof Load:	150% of rate load	Max. Safety Load:	125% F.S.
Ultimate Load:	400% F.S.	Battery Life:	≥40 hours
Power On Zero Range:	20% F.S.	Operating Temp.:	- 10℃ ~ + 40℃
Manual Zero Range:	4% F.S.	Operating Humidity:	≤85% RH under 20℃
Tare Range:	20% F.S.	Remote Controller Distance:	Min.15m
Stable Time:	≤10seconds;	Telemetry Frequency:	430MHz to 470MHz
System Range:	100~300m(Open Area),800~1500m (Optional)
Battery Type:	18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah)
