Cable Tension Sensor
LCS4004
Web tension control using load cell / miniature load cell tension compression accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Web tension control using load cell / miniature load cell tension compression provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments.
Quantity:
Web tension control using load cell / miniature load cell tension compression accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Web tension control using load cell / miniature load cell tension compression provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments. ( cable tension sensor, web tension control using load cell, miniature load cell tension compression )
LCS4004 Cable Tension Sensor Features:
It has the characteristics of high precision and reliable sealing, and can be used for both portable handheld and online tension detection and control of devices.
It has the characteristics of high precision and reliable sealing, and can be used for both portable handheld and online tension detection and control of devices.
LCS4004 Cable Tension Sensor Usage:
Web tension control using load cell / miniature load cell tension compression suitable for tension measurement of various optical fibers, yarns, chemical fiber metal wires, wires, cables, tapes, and steel strips; Widely used in the fields of textile, electronic chemical papermaking, machinery, and industrial automation measurement and control.
Web tension control using load cell / miniature load cell tension compression suitable for tension measurement of various optical fibers, yarns, chemical fiber metal wires, wires, cables, tapes, and steel strips; Widely used in the fields of textile, electronic chemical papermaking, machinery, and industrial automation measurement and control.

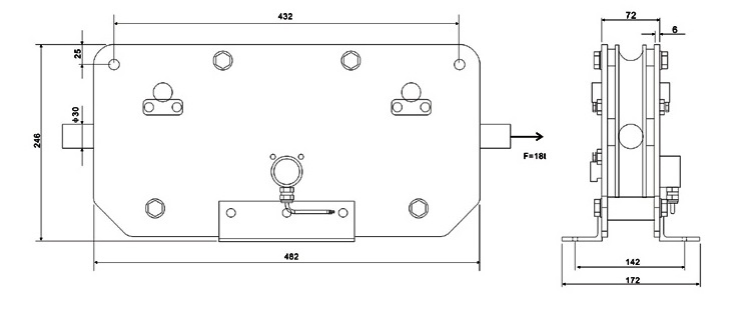

LCS4004 Cable Tension Sensor Dimension:mm
LCS4004 Cable Tension Sensor Technical Parameter:
| Rated Load: | 0.2/0.3/0.5/1/2/3/5/8/10/20t | ||
| Sensitivity: | 2.0mV/V±0.1% /3.0mV/V±0.1% | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 380Ω±10Ω | Element Material: | A:Alloy Steel, SS:Stainless Steel |
| Output Resistance: | 350Ω±2Ω | Cable: | Length=L:3~12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
