Aluminium Load Cell
LC3503
LC3503 Single Point aluminium load cell have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Parellel aluminium load cell is also called Platform Load Cell.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3503
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 5~100kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3503
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 5~100kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
LC3503 Single Point aluminium load cell have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Parellel aluminium load cell is also called Platform Load Cell.
Advantages of LC3503 Single Point aluminium load cell / Parellel aluminium load cell:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LC3503 Single Point aluminium load cell are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LC3503 Single Point aluminium load cells can be used to measure loads range from 5kg to 100kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LC3503 Parellel aluminium load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys. ( aluminium load cell, Single Point aluminium load cell, Parellel aluminium load cell)
LC3503 Aluminium Load Cell Features:
✅ Parellel bending beam
✅ Capacity:5kg,...,100kg
✅ Accuracy:0.02%R.O.
✅ Connection with 6-wire shielded cable
✅ With humidity resistant protective coating
✅ Recommended platform size:250*250MM
✅ Aluminum construction with surface anodized
✅ Environment protection class:IP66
✅ Parellel bending beam
✅ Capacity:5kg,...,100kg
✅ Accuracy:0.02%R.O.
✅ Connection with 6-wire shielded cable
✅ With humidity resistant protective coating
✅ Recommended platform size:250*250MM
✅ Aluminum construction with surface anodized
✅ Environment protection class:IP66
LC3503 Aluminium Load Cell Applications:
✅ Price computing scales
✅ Counting scales
✅ Weighing scales
✅ Retail scales
✅ Bench scales
✅ Platform scales
✅ Packing machinerys
✅ Price computing scales
✅ Counting scales
✅ Weighing scales
✅ Retail scales
✅ Bench scales
✅ Platform scales
✅ Packing machinerys

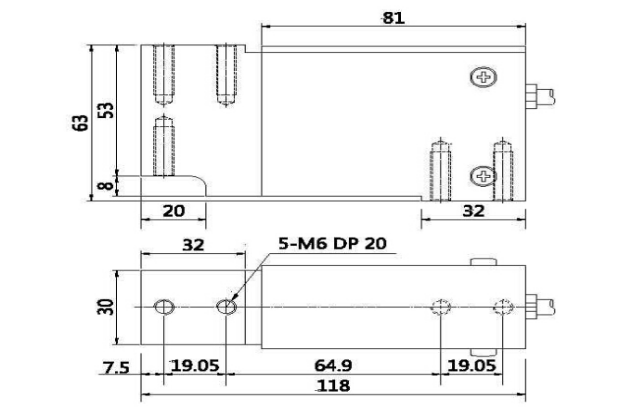

LC3503 Aluminium Load Cell Dimension:
LC3503 Aluminium Load Cell Technical Parameter:
| Model | LC3503 | Excitation,Recommended | 5－12VDC |
| Rated Capacity | 5/10/20/50/100kg | Excitation,Maximum | 18VDC |
| Accuracy Class | G | Operating Temp.Range | -20－+60℃ |
| Rated Output | 2.0±5%mV/V | Safe Overload | 150%R.C. |
| Zero Balance | ±2%R.O. | Ultimate Overload | 200%R.C. |
| Input Resistance | 405±10Ω | Insulation Resistance | ≥5000MΩ(50VDC) |
| Output Resistance | 350±3Ω | Cable,Length | ø6mm×3m * |
| Linearlty Error | ±0.015%R.O. | Protection Class | IP66 |
| Repeatability Error | ±0.01%R.O. | Temp.Effect on Output | ±0.02%R.O./10℃ |
| Hysteresis Error | ±0.01%R.O. | Temp.Effect on Zero | ±0.02%R.O./10℃ |
| Creep in 30 Min. | ±0.02%R.O. | Compensated Temp.Range | -10－+40℃ |
