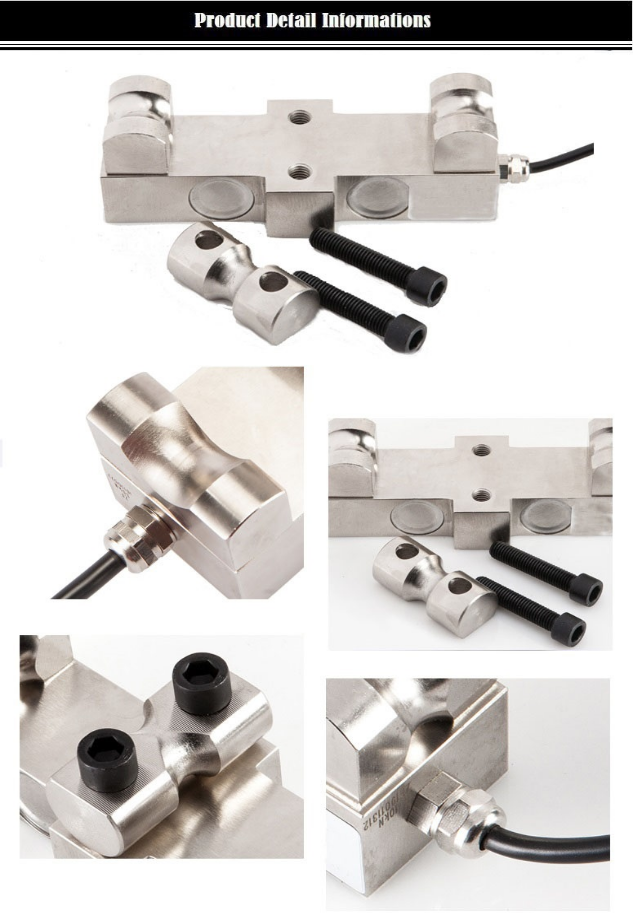

Clamp-On Load Cell
LC104B
Wire Rope Clamp On Load Cell /Cable Clamp-On Load Cell , This non-invasive sensor installs in minutes without cable alterations, delivering real-time, accurate tension data. Perfect for cranes, shipping, and heavy equipment. It ensures safety, prevents overloads, and works seamlessly with monitoring systems. Robust and easy to use. ( C
Quantity:
Wire Rope Clamp On Load Cell /Cable Clamp-On Load Cell , This non-invasive sensor installs in minutes without cable alterations, delivering real-time, accurate tension data. Perfect for cranes, shipping, and heavy equipment. It ensures safety, prevents overloads, and works seamlessly with monitoring systems. Robust and easy to use. ( Clamp On Load Cell, Rope Clamp Tension Load Cell, Clamp-On Wire Rope Load Cells )
LC104B Clamp-On Load Cell Specification:
Wire Rope Clamp On Load Cell /Cable Clamp-On Load Cell, has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.
✅ For load limiting in lifting systems
✅ To limit the speed as a function of the load on traversing
✅ To limit the effort applied for pulling
This universal load cell is recommended for its simplicity and quick lifting capability.
Wire Rope Clamp On Load Cell /Cable Clamp-On Load Cell, has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.
✅ For load limiting in lifting systems
✅ To limit the speed as a function of the load on traversing
✅ To limit the effort applied for pulling
This universal load cell is recommended for its simplicity and quick lifting capability.

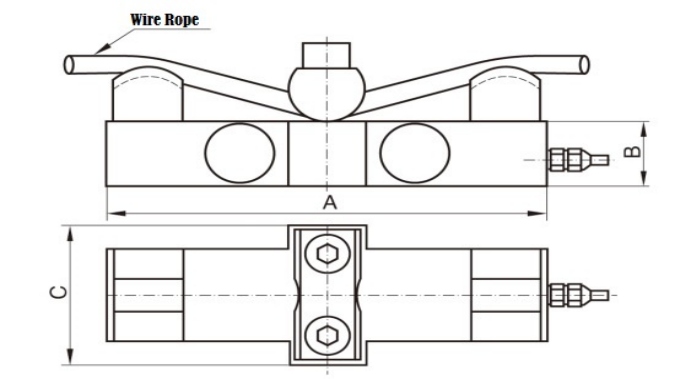

LC104B Clamp-On Load Cell Dimension:mm
| Wire rope tension | Wire rope Diameter | Dimension(mm) | ||
| (kN) | (mm) | A | B | C |
| 10kN | Ø6-14 | 180 | 35 | 60 |
| 20kN | Ø10-18 | 180 | 35 | 60 |
| 40~60kN | Ø16-26 | 180 | 37 | 60 |
| 100~140kN | Ø24-36 | 180 | 37 | 60 |
| 200/250/300kN | Ø24-36 | 240 | 40 | 80 |
Note:To output 4-20mA, 0-5V, 0-10V, an external transmitter is required;
LC104B Clamp-On Load Cell Technical Parameter:
| Wire Rope Size: | 10/20/40/50/60/100/120/140/200/250/300kN (6~40mm) | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 700±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
