Multi Axis Load Cell
LCX2003
Multi Axis Load Cell: Measure Force in Two Planes Simultaneously
The pivot pin design structure is adopted, and the force values in two directions are measured at the same time. The installation is simple and can directly replace the installation of shaft pin. Multi Axis Load Cell /different sensors used in robotics is widely used in the force value detection of connecting mechanisms in the fields of aerospace, robot, lifting equipment, automobile and mechanical automation.
The pivot pin design structure is adopted, and the force values in two directions are measured at the same time. The installation is simple and can directly replace the installation of shaft pin. Multi Axis Load Cell /different sensors used in robotics is widely used in the force value detection of connecting mechanisms in the fields of aerospace, robot, lifting equipment, automobile and mechanical automation.
Quantity:
Multi Axis Load Cell: Measure Force in Two Planes Simultaneously
The pivot pin design structure is adopted, and the force values in two directions are measured at the same time. The installation is simple and can directly replace the installation of shaft pin. Multi Axis Load Cell /different sensors used in robotics is widely used in the force value detection of connecting mechanisms in the fields of aerospace, robot, lifting equipment, automobile and mechanical automation. (multi axis load cell, multi axis load cell manufacturer, different sensors used in robotics )
Integrated standard signal output can be selected, three wire system or four wire system, with output of 0 ~ 5V, 0 ~ 10V, or 4 ~ 20mA. Power supply: 12V or 24V.
The Multi Axis Load Cell /different sensors used in robotics can measure the force in two directions at the same time; LCX2003 Multi Axis Load Cell manufacturer has the characteristics of small measuring range, stable performance and small volume. It is applicable to robot manufacturing, automation equipment, intelligent automation control equipment, intelligent robot, polishing equipment, workpiece stress state analysis, component working process stress analysis, etc.

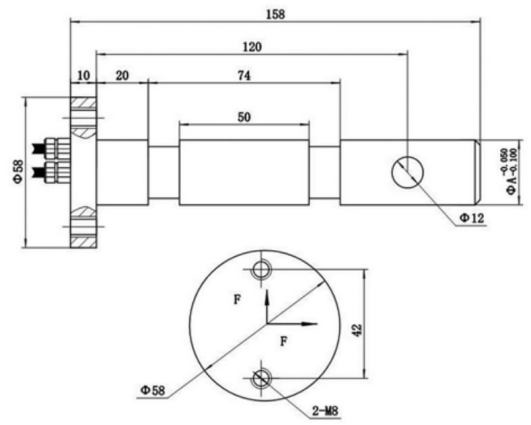

LCX2003 Multi Axis Load Cell Dimension:
✅ The overall dimensions can be designed and customized according to customer requirements.
LCX2003 Multi Axis Load Cell Technical Parameter：
| Capacity | X:50kg～2t | Zero Temp. drift: | ≤±0.03％F.S/10℃ |
| Y:50kg～2t | Sensitivity Temp. drift: | ≤±0.03％F.S/10℃ | |
| Zero output: | ≤±1%F.S | Operating Temp. range: | -20℃～+60℃ |
| Sensitivity: | 1.0～1.5mV/V | Input impedance: | 380±30Ω/730±30Ω |
| Nonlinear: | ≤±0.3%F.S. | Output impedance: | 350±3Ω/700±3Ω |
| Lagging: | ≤±0.2%F.S | Insulation resistance: | ≥5000MΩ/100VDC |
| Repeatability: | ≤±0.3%F.S | Safety overload: | 120％F.S |
| Creep: | ≤±0.3%F.S/30min | Supply bridge voltage: | 5～12VDC(Recommend10VDC) |
| Mutual interference: | ≤±2.5%F.S | Material: | Alloy/ Stainless Steel |
