Multi Axis Loadcells
LCX2005
Two axis loadcells /two biaxial load cell ,This precision sensor simultaneously measures forces in two perpendicular directions (X and Y axes). Featuring high accuracy, robust construction, and compact design, Two axis loadcells /two biaxial load cell is ideal for robotics, tactile feedback, industrial automation, and biomechanical research. Delivers reliable data for advanced force control and monitoring applications.
Quantity:
Two axis loadcells /two biaxial load cell ,This precision sensor simultaneously measures forces in two perpendicular directions (X and Y axes). Featuring high accuracy, robust construction, and compact design, Two axis loadcells /two biaxial load cell is ideal for robotics, tactile feedback, industrial automation, and biomechanical research. Delivers reliable data for advanced force control and monitoring applications. ( multi axis loadcells, two axis loadcells, two biaxial load cell )
LCX2005 Multi Axis Loadcells Feature:
✅ Compression & Torque Biaxial Sensor;
✅ Interference errors of each signal is small;
✅ Low profile,easy to install;
✅ Dimension could be Customized;
✅ Compression & Torque Biaxial Sensor;
✅ Interference errors of each signal is small;
✅ Low profile,easy to install;
✅ Dimension could be Customized;

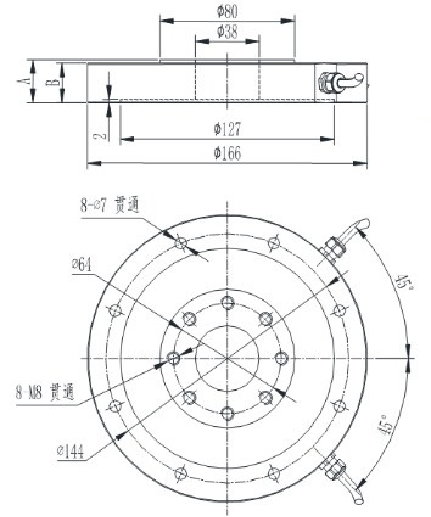

LCX2005 Multi Axis Loadcells Dimension:
Note: The overall dimensions can be designed and customized according to customer requirements.
Load Direction:
LCX2005 Multi Axis Loadcells Technical Parameter:
| Rated Load(N/N.m): | F: 10/20/30/50kN | ||
| M: 300/500/700/1000N.m | |||
| Rated output: | 1.0±10%mV/V | Output impedance: | 700±10Ω |
| Zero balance: | ±2%F.S. | Insulation: | ≥5000MΩ/100VDC |
| Non-linearity: | 0.1%F.S. | Recommended excitation: | 5~15V |
| Hysteresis: | 0.1%F.S. | Maximum excitation: | 20V |
| Repeatability: | 0.1%F.S. | Compensated temp range: | -10~40℃ |
| Creep(30min): | 0.2%F.S. | Operation temp range: | -20~75℃ |
| Temp.effect on output: | 0.05%F.S. | Safe overload: | 150%F.S. |
| Temp.effect on zero: | 0.05%F.S./10℃ | Ultimate overload: | 200%F.S. |
| Input impedance: | 780±20Ω | Weight approx. | 0.6kg |
