Multi Axis Load
LCX2006
Two axis force sensor /2 axis force sensor ,This precision sensor simultaneously measures forces in two perpendicular directions (X and Y axes). Featuring high accuracy, robust construction, and compact design, Two axis force sensor /2 axis force sensor is ideal for robotics, tactile feedback, industrial automation, and biomechanical research. Delivers reliable data for advanced force control and monitoring applications.
Quantity:
Two axis force sensor /2 axis force sensor ,This precision sensor simultaneously measures forces in two perpendicular directions (X and Y axes). Featuring high accuracy, robust construction, and compact design, Two axis force sensor /2 axis force sensor is ideal for robotics, tactile feedback, industrial automation, and biomechanical research. Delivers reliable data for advanced force control and monitoring applications. ( multi axis load, two axis force sensor, 2 axis force sensor )
LCX2006 Multi Axis Load Feature:
✅ Compression & Torque Biaxial Sensor;
✅ Interference errors of each signal is small;
✅ Low profile,easy to install;
✅ Dimension could be Customized;
✅ Compression & Torque Biaxial Sensor;
✅ Interference errors of each signal is small;
✅ Low profile,easy to install;
✅ Dimension could be Customized;

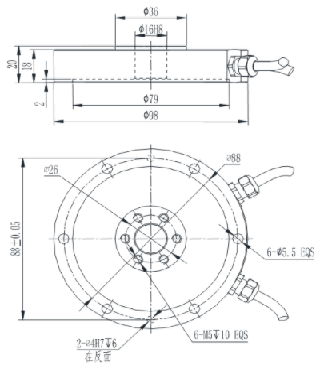

LCX2006 Multi Axis Load Dimension:
Note:The overall dimensions can be designed and customized according to customer requirements.
LCX2006 Multi Axis Load Technical Parameter:
| Cap.(N/N.m) | F: 20/30/50/100/200/500/1000/2000N | ||
| M: 1/2/3/5/10/20/30/50N.m | |||
| Rated output | 1.0±10%mV/V | Recommended excitation | ≥5000MΩ/100VDC |
| Zero balance | ±2%F.S. | Maximum excitation | 5~15V |
| Non-linearity | 0.1%F.S. | Compensated temp range | 20V |
| Hysteresis | 0.1%F.S. | Operation temp range | -10~40℃ |
| Repeatability | 0.1%F.S. | Safe overload | -20~75℃ |
| Creep(30min) | 0.2%F.S. | Ultimate overload | 150%F.S. |
| Temp.effect on output | 0.05%F.S. | Cable size | 200%F.S. |
| Temp.effect on zero | 0.05%F.S./10℃ | Weight approx. | Φ4×4000mm |
| Input impedance | 0.05%F.S./10℃ | Material | 0.6kg |
| Output impedance | 350±10Ω | IP Class | IP66 |
| Insulation | 350±10Ω | ||
